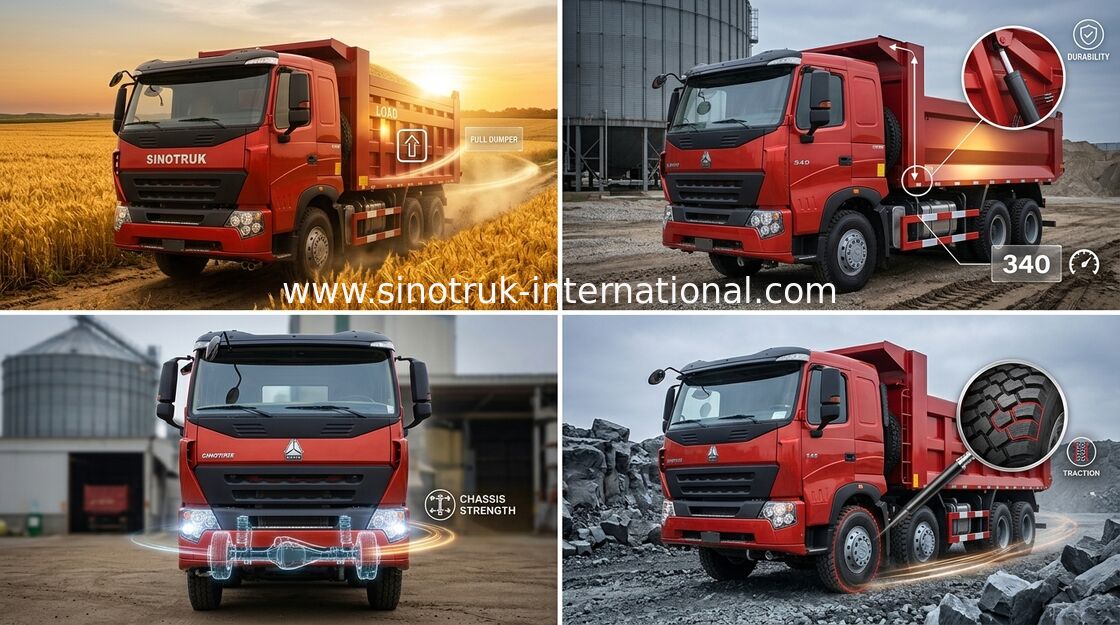

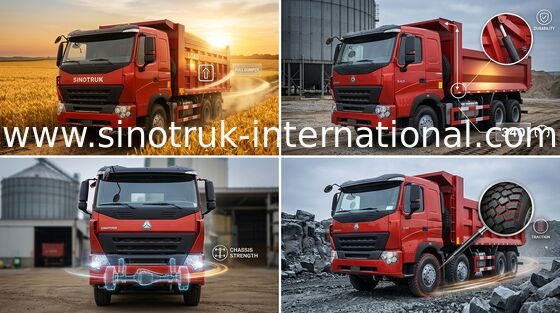

SINOTRUK Tipper Dump Truck HOWO A7 371HP engine for Mining ZZ3257N3847N1

SINOTRUK Tipper Dump Truck HOWO A7 371HP engine for Mining ZZ3257N3847N1

    • SINOTRUK Tipper Dump Truck  HOWO A7 371HP engine  for Mining ZZ3257N3847N1
    • SINOTRUK Tipper Dump Truck  HOWO A7 371HP engine  for Mining ZZ3257N3847N1
    • SINOTRUK Tipper Dump Truck  HOWO A7 371HP engine  for Mining ZZ3257N3847N1
    • SINOTRUK Tipper Dump Truck  HOWO A7 371HP engine  for Mining ZZ3257N3847N1
  • SINOTRUK Tipper Dump Truck  HOWO A7 371HP engine  for Mining ZZ3257N3847N1

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257N3847N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD41000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3257N3847N1
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Cargo Body: 5800*2300*1500mm
    Loading Capacity: 25-40tons

    Description:

    This type product , with features of reliable structure , high loading capacity which can

    load 30-60tons,strong power from 266HP to 420HP,reliable performance and wide

    acceplication.



    This model can meet the requirements of severe environment like construction site and

    mining area.which can fullfiled  you of short distance transportation of mining rock and

    soil as well as engineering construction.







    Specifications:





    Tipper Dump Truck SINOTRUK HOWO A7 6X4 for Construction ZZ3317N3867N1

    Model ZZ3257N3847N1
    Drive Type 8×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.




    Applications:

    Working for Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.



    Competitive Advantage:



    1)Advanced cargo body structure,light weight,high rigidity,high loading capacity

    2)Adopt the high strength steel,it has long service life

    3)Optimized the whole truck structure has lower center of gravity,with higher security when lifting the cargo body.

    4)Optimized the sealing structure has the better sealing effect.

    5)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.



    SINOTRUK Tipper Dump Truck  HOWO A7 371HP engine  for Mining ZZ3257N3847N1
