|Place of Origin:||China|
|Brand Name:||SINOTRUK HOWO A7|
|Minimum Order Quantity:||1 Unit|
|Packaging Details:||Nude or Waxing in Roro or bulk ship|
|Delivery Time:||25 working days after received your advance payment|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||3,000units per month|
|Product Name:||Tipper Dump Truck||Model:||ZZ3257N3847N1|
|Drive Type:||LHD 6X4||Emission Standard:||Euro 2|
|Engine:||WD615.47, 371HP||Cargo Body:||5800*2300*1500mm|
commercial dump truck,
sinotruk howo dump truck,

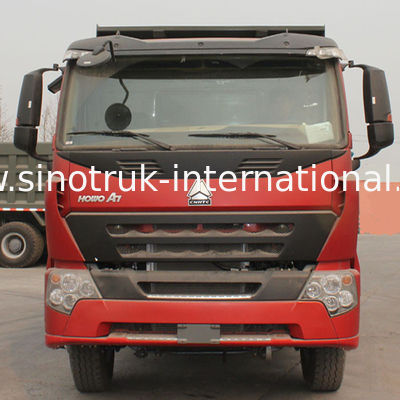

Mining SINOTRUK HOWO 6X4 Tipper Truck
This product have the characteristics of reanable structure , large loading capacity which can load 30-40tons,strong power from 266HP to 420HP,reliable performance and wide acceplication.This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.
|Cabin||A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)|
|Transmission||HW19710(10 forwards & 2 reverses)|
|Front Axle||1×HF9 ( 9 Tons)|
|Driving Axle||HC16, 16Tons|
|Steering||ZF8118 hydraulic steering with power assistance.|
|Clutch||Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance|
|Rim/ Tire||11.00R20,12.00R20,12.00R24 Radial tire|
|Cargo body||5800×2300×1500(mm),Bottom:8mm, Side:6mm|
|The curb weight||12200(Kg)|
|Gross weight||25000 kg|
|Color||White, red, green, golden and so on.|
Working for Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
1)Good cargo body structure , light weight , high rigidity , hight loading capacity
2)adopt the high strength steel,it has long service life
3)perfect the sealing structure has the better sealing effect.
4)The advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
5)Multiple box structures and device selections
6)the whole truck structure has lower center of gravity,with higher security when lifting the cargo body.
