SINOTRUK INTERNATIONAL CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SINOTRUK HOWO A7 |
| Certification: | ISO/3C/BV/IFA/SGS |
| Model Number: | ZZ3257N3647N1 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD50000-USD54000/UNIT)negotiation |
| Packaging Details: | Nude or Waxing in Roro or bulk ship |
| Delivery Time: | 25 working days after received your advance payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3,000units per month |
| Product Name: | Tipper Dump Truck | Model: | ZZ3257N3647N1 |
|---|---|---|---|
| Drive Type: | LHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.47, 371HP | Cargo Body: | 5800*2300*1500mm |
| Loading Capacity: | 30-40tons | ||
| High Light: | heavy dump truck,sinotruk howo dump truck,30tons Loading Tipper Dump Truck |
||
Description:
This kind of truck have the characteristics of reanable structure , large loading capacity which can load 30-40tons,with strong power from 266HP to 420HP,reliable performance and wide acceplication.This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.
Specification:

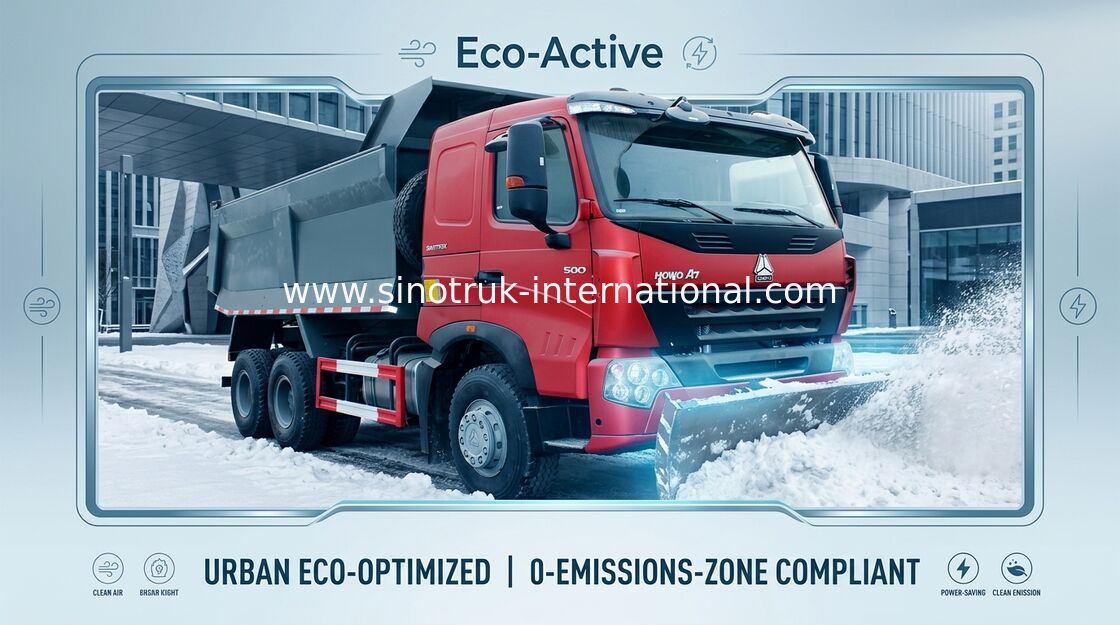

| Tipper Dump Truck SINOTRUK HOWO A7 30 tons for Mining ZZ3257N3647N1 | ||||
| Model | ZZ3257N3647N1 | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3600+1350(mm) | |||
| Overall dimension | 8375×2496×3450(mm) | |||
| Cargo body | 5600×2300×1500(mm),Bottom:8mm, Side:6mm | |||
| The curb weight | 12200(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
Suitable for Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
Competitive Advantage:
1)Optimized cargo body structure , light weight , high rigidity , hight loading capacity
2)adopt the high strength steel,it has long service life
3)perfect the sealing structure has the better sealing effect.
4)The advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
5)Multiple box structures and device selections
