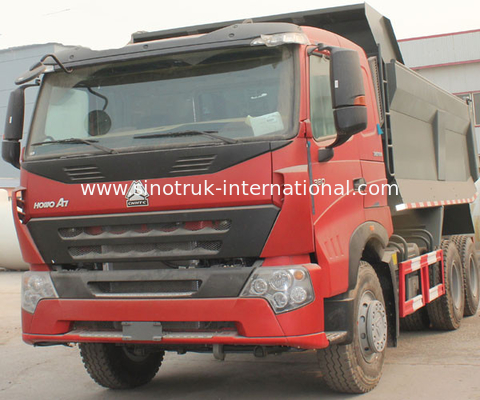

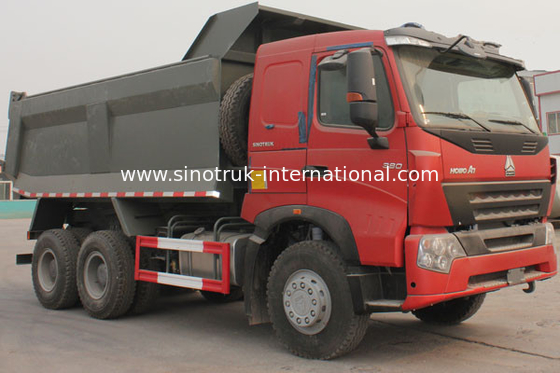

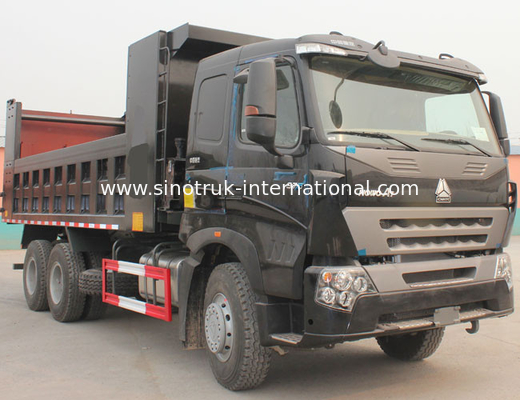

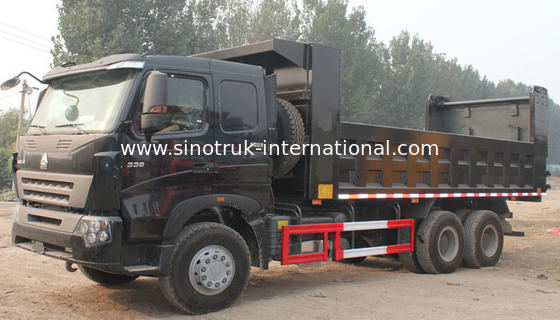

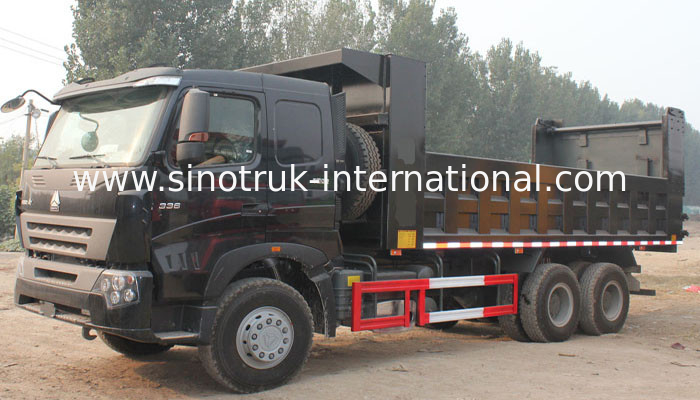

Tipper Dump Truck SINOTRUK HOWO A7 371HP 10 wheels 25tons ZZ3257N3647N1

Tipper Dump Truck SINOTRUK HOWO A7 371HP 10 wheels 25tons ZZ3257N3647N1

    • Tipper Dump Truck SINOTRUK HOWO A7 371HP 10 wheels 25tons ZZ3257N3647N1
    • Tipper Dump Truck SINOTRUK HOWO A7 371HP 10 wheels 25tons ZZ3257N3647N1
    • Tipper Dump Truck SINOTRUK HOWO A7 371HP 10 wheels 25tons ZZ3257N3647N1
    • Tipper Dump Truck SINOTRUK HOWO A7 371HP 10 wheels 25tons ZZ3257N3647N1
  • Tipper Dump Truck SINOTRUK HOWO A7 371HP 10 wheels 25tons ZZ3257N3647N1

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO A7
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257N3647N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD50000-USD54000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3257N3647N1
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Cargo Body: 5800*2300*1500mm
    Loading Capacity: 30-40tons

    Description:



    SINOTRUK HOWO A7 25 TONS Dump truck is the most advanced design for exporting in domestic and abroad auto field, fully express the concept of new Dump truck design . Delicate design, excellent technology, which will dazzle you as groundbreaking works. with the features of Comfort, safety, reliability, electronic level geared to international level. little damage to enviroment. Engine output 266-420HP. Euro2-Euro5 emission stand engine.reliable performance and wide acceplication.this type truck can full filed of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.





    Specification:



    Tipper Dump Truck SINOTRUK HOWO A7 371HP 10 wheels 25tons ZZ3257N3647N1
    Model ZZ3257N3647N1
    Drive Type 6×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3600+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5600×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12200(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.




    Applications:



    It is suitable for Mining industry, Construction business, docks, enven logistics industry and so on.



    Competitive Advantage:



    1)using VOLVO cargo body  , then reduce the self weight , and more high rigidity , high loading capacity

    2)adopt the high strength steel, make it has long service life

    3)advanced hydraulic control system helps to avoid mistake operation, it has higher safety and  running efficiency.

    4)the whole truck structure has lower center of gravity,with higher security when lifting the cargo body.

    5) beautiful apperance of cabin, more safety and reliable

    6) low fuel consumption

    7) enough strong power of engine from 266HP to 460Hp
