Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab

Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab

  • Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab
  • Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab
  • Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab
  • Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab
Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO 70 Mining
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ5707S3840AJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD78000-USD81000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Contact Now
Detailed Product Description
Product Name: Tipper Dump Truck Model: ZZ5707S3840AJ
Drive Type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.47, 371HP Cargo Body: 5800*3100*1600mm
Loading Capacity: 70tons
High Light:

heavy dump truck

,

sinotruk howo dump truck

Tipper Dump Truck LHD SINOTRUK HOWO70 Mining 10Wheels 371HP 70tons ZZ5707S3840AJ



Description:



Tipper Dump Truck LHD SINOTRUK HOWO70 Mining 10Wheels 371HP 70tons ZZ5707S3840AJ

HOWO Mining Dump Truck with unilateral high strength skeleton cab, modelling concise, hale and hearty, broaden their horizons; good sealing can ensure your vehicle is always in the safe and comfortable driving environment; there are each of the two lighting lamps at the top of cabin's front and back for night work.



The configuration of the HW19710 gearbox, HW70 force, torque up to 700NM.

Equipped with a 500 liter D type fuel tank (optional 400 liters fuel tank), the workload of vehicle to meet your requirements.



SINOTRUK independent research and development of new front axle assembly, the application of the whole casting strander beam, 500x210 strengthen type brake for truck parts assembly technology.

Rear axle adopts AC26 mine driving axle, the main reducer structure design more reasonable, strengthen type casting bridge shell and drum brake the vehicle carrying capacity and braking ability in the leading domestic level.



Wheel and tyre: 10.0/2-25 wheel assembly, the standard 14.00-25-36PR tire, the original 14.00R25-36PR tire, is specifically for mines overlord customization of high load capacity, high wear-resistant special tires.





Specification:



Tipper Dump Truck LHD SINOTRUK HOWO70 Mining 10Wheels 371HP 70tons ZZ5707S3840AJ

Model  ZZ5707S3840AJ
Drive Type 6×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW7D   unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF12 ( 12 Tons)
Driving Axle AC26, 26Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 14.00-25,14.00R25,Radial tire
Wheel base 3800+1500(mm)
Overall dimension 8700×3300×3670(mm)
Cargo body

5800×3100×1600(mm),Bottom:16mm, Side:12mm

The curb weight 23000(Kg)
Gross weight 70000 kg
Max. speed 50km/h
Color White, red, green, golden and so on.




Applications:



HOWO 70 Mining Dump Truck is heavy concentrated engineering design personnel and development, first and foremost applies to all kinds of open pit coal mine, steel mills, hydropower construction, dock, poor road conditions, homework is in bad situations in areas within a short distance transport business development of this car, in terms of the particular user groups, with high economic benefit and social benefit.





Competitive Advantage:



1) all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
2) using the high strength steel, make it has a long service life
3) The T type domestic advanced hydraulic control system helps to avoid wrong operation, it has higher

safety and  running efficiency.
4) excellant apperance of cabin, safety, reliable
5) low fuel consumption
6) strong enough engine
7) with all kinds of truck model, which can fulfil your requirements
8) the key parts adopt the world's top technology products
9) based on strong technical support and top level technology make the trucks with high

quality and more reliable
10) competive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and

quickly

13) professional import and export dealing precedure, make customs clearance more high efficiency

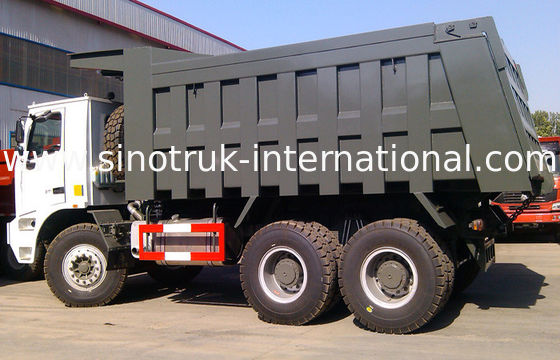

Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab 0

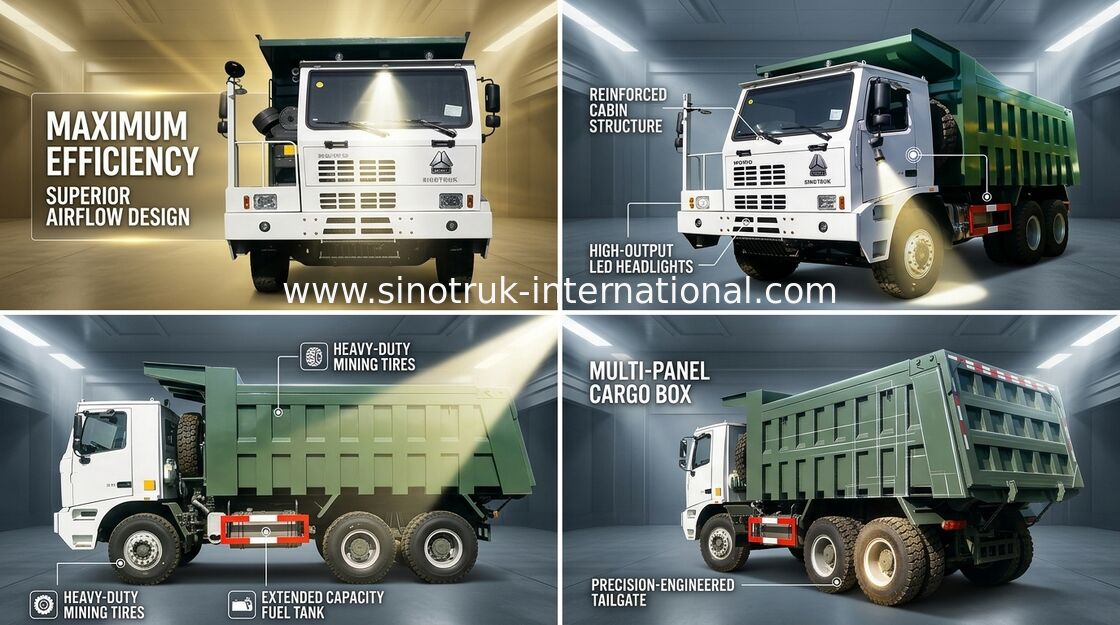

Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab 1
