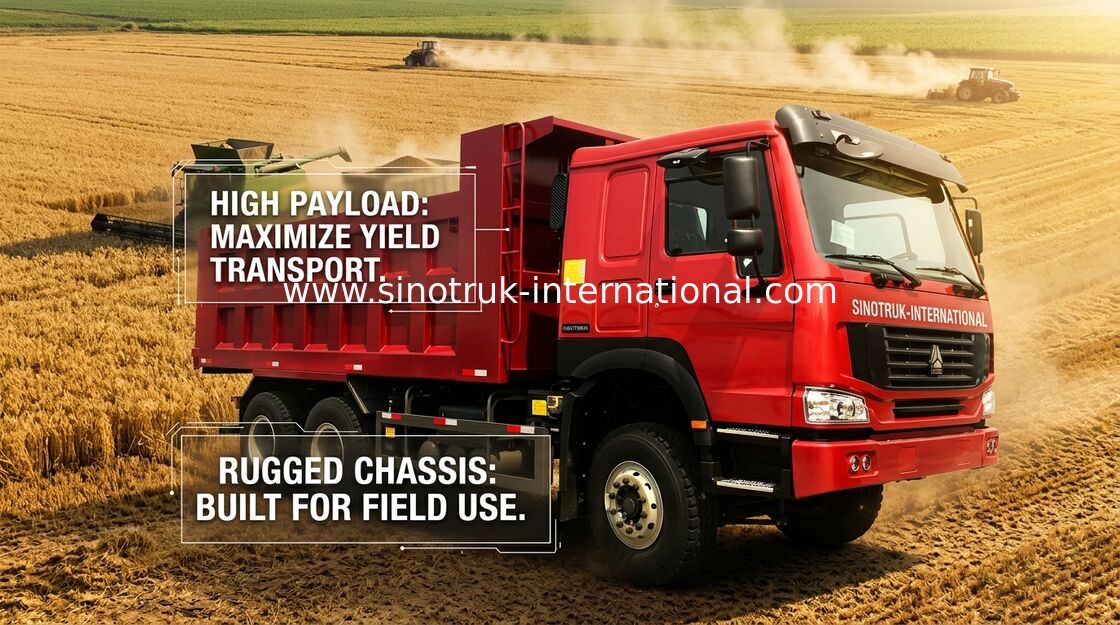

Sinotruk Howo Tipper Dump Truck 6X4 RHD 371HP 25 Ton 10-25CBM ZZ3257N3647A

Sinotruk Howo Tipper Dump Truck 6X4 RHD 371HP 25 Ton 10-25CBM ZZ3257N3647A

  • Sinotruk Howo Tipper Dump Truck 6X4 RHD 371HP 25 Ton 10-25CBM  ZZ3257N3647A
  • Sinotruk Howo Tipper Dump Truck 6X4 RHD 371HP 25 Ton 10-25CBM  ZZ3257N3647A
  • Sinotruk Howo Tipper Dump Truck 6X4 RHD 371HP 25 Ton 10-25CBM  ZZ3257N3647A
  • Sinotruk Howo Tipper Dump Truck 6X4 RHD 371HP 25 Ton 10-25CBM  ZZ3257N3647A
Sinotruk Howo Tipper Dump Truck 6X4 RHD 371HP 25 Ton 10-25CBM  ZZ3257N3647A
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3647A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD40000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Contact Now
Detailed Product Description
Product Name: Tipper Dump Truck Model: ZZ3257N3647A
Drive Type: RHD 6X4 Emission Standard: Euro 2
Engine: WD615.47, 371HP Cargo Body: 5400*2300*1500mm
Loading Capacity: 30-40tons
High Light:

commercial dump truck

,

sinotruk howo dump truck

SINOTRUK HOWO Tipper Dump Truck 6X4 RHD 371HP 25ton 10-25CBM ZZ3257N3647A



Description:

SINOTRUK HOWO Tipper Dump Truck 6X4 RHD 371HP 25ton 10-25CBM ZZ3257N3647A

Which is the most famouse brand of heavy duty truckIt in China. It's also the biggest exported quantity of China brand trucks in all over the world. Abundant truck prodcuts can meets customers demands very well.



It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works.



Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on.



Power range: 266PS - 420PS.



New HOWO dump truck, High Quality , More Lighter,

High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.


Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system





Specification:



SINOTRUK HOWO Tipper Dump Truck 6X4 RHD 371HP 25ton 10-25CBM ZZ3257N3647A

Model ZZ3257N3647A
Drive Type 6×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3600+1350(mm)
Overall dimension 8375×2496×3450(mm)
Cargo body

5400×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 12150(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on.



Competitive Advantage:



1)low fuel consumption
2) strong enough engine

3)with all kinds of truck model, which can fulfil your requirements

4)using the high strength steel, make it has a long service life

5)all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
6)The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and  running efficiency.

7)competive price, cost-effective
8)quick and efficient spare parts supply bring you more convenient
9)fast delivery time, we can arange production according to your needs exactly and

quickly

10) professional import and export dealing precedure, make customs clearance more high efficiency

11)excellant apperance of cabin, safety, reliable




Sinotruk Howo Tipper Dump Truck 6X4 RHD 371HP 25 Ton 10-25CBM  ZZ3257N3647A 0Sinotruk Howo Tipper Dump Truck 6X4 RHD 371HP 25 Ton 10-25CBM  ZZ3257N3647A 1
