Home ProductsTipper Dump Truck

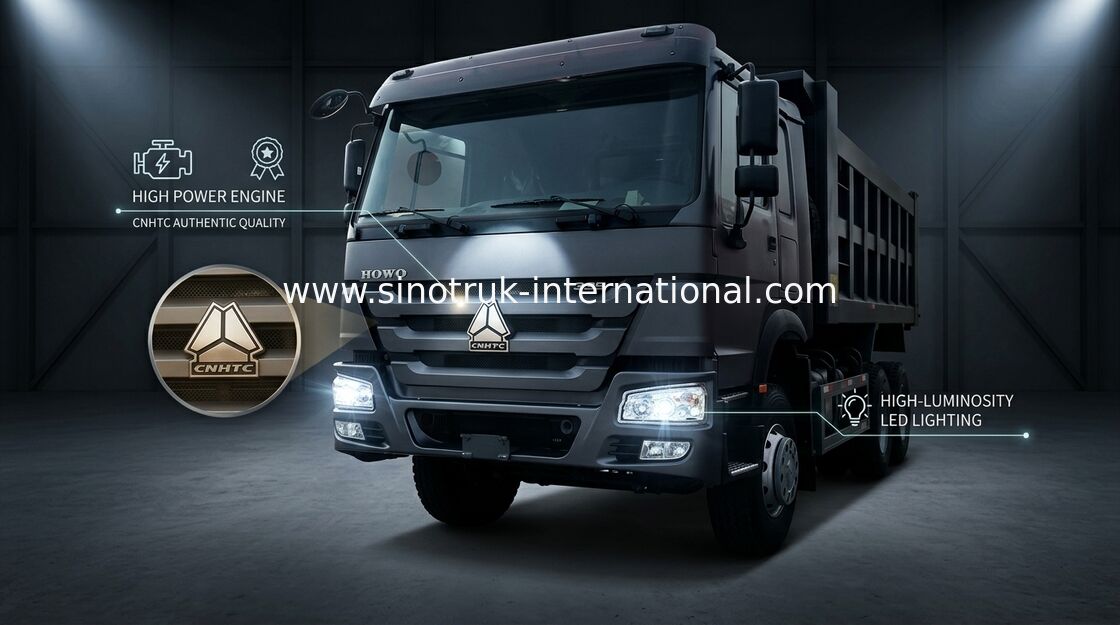

Automatic Sinotruk Howo Dump Truck , Commercial 10 Wheeler Dump Truck

Automatic Sinotruk Howo Dump Truck , Commercial 10 Wheeler Dump Truck

Automatic Sinotruk Howo Dump Truck , Commercial 10 Wheeler Dump Truck
Automatic Sinotruk Howo Dump Truck , Commercial 10 Wheeler Dump Truck
Automatic Sinotruk Howo Dump Truck , Commercial 10 Wheeler Dump Truck
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3847A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD40000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Contact Now
Detailed Product Description
Product Name: Heavy Tipper Trucks Model: ZZ3257N3847A
Drive Type: RHD 6X4 Emission Standard: Euro 2
Engine: WD615.47, 371HP Cargo Body: 5800*2300*1500mm
Loading Capacity: 30-40 Tons
High Light:

commercial dump truck

,

heavy dump truck



30 - 40 Tons 6X4 RHD Tipper Dump Truck 10-25CBM Front Lifting Hydraulic Cylinder





Description:



ZZ3257N3847A Sinotruck Howo heavy tipper trucks Are The Ideal Choice Of Clients .The Dump Trucks Can Be Used For Transporting Stones,Sands,Minerals Etc,
Our Sinotruck Howo Dump Tipper Truck Emission Standard Euro 2 Drive Type RHD 6X4 High Performance 30-40 Tons Loading Capacity



30 - 40 Tons 6X4 RHD Tipper Dump Truck 10-25CBM Front Lifting Hydraulic Cylinder

Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on.

Power range: 266HP - 420HP.



It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works

Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system



New HOWO dump truck, High Quality , More Lighter,

High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.





Specification:



30 - 40 Tons 6X4 RHD Tipper Dump Truck 10-25CBM Front Lifting Hydraulic Cylinder
Model ZZ3257N3847A
Drive Type 6×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body

5800×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 12200(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on.



Competitive Advantage:



1)competive price, cost-effective
2)with all kinds of truck model, which can fulfil your requirements

3)all kinds of cargo body structure can be designed and produced according to your request,

make it have light curb weight , high rigidity , high loading capacity
4)using the high strength steel, make it has a long service life
5)The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.
6)excellant apperance of cabin, safety, reliable

7)quick and efficient spare parts supply bring you more convenient

8) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

9) The hydraulic sytem using HYVA brand or Domestic famouse brand

10)low fuel consumption
11) strong enough engine

12)fast delivery time, we can arange production according to your needs exactly and quickly

13) professional import and export dealing precedure, make customs clearance more high efficiency
