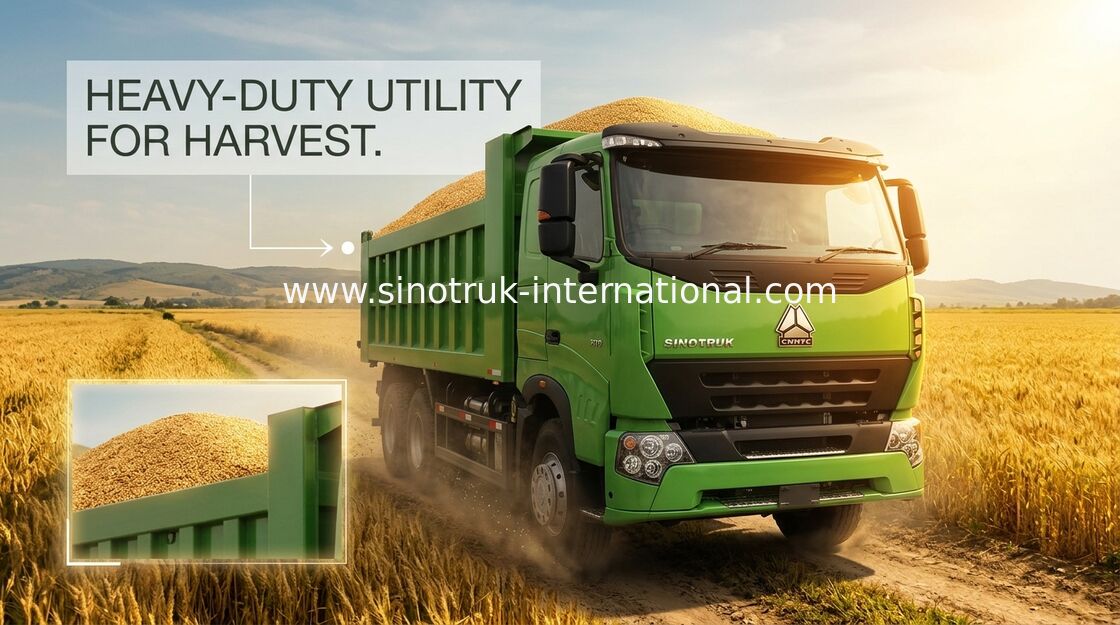

SINOTRUK HOWO Heavy Dump Truck RHD 6X4 For Construction Material Loading

SINOTRUK HOWO Heavy Dump Truck RHD 6X4 For Construction Material Loading

    • SINOTRUK HOWO Heavy Dump Truck RHD 6X4 For Construction Material Loading
    • SINOTRUK HOWO Heavy Dump Truck RHD 6X4 For Construction Material Loading
    • SINOTRUK HOWO Heavy Dump Truck RHD 6X4 For Construction Material Loading
    • SINOTRUK HOWO Heavy Dump Truck RHD 6X4 For Construction Material Loading
  • SINOTRUK HOWO Heavy Dump Truck RHD 6X4 For Construction Material Loading

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO A7
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257N3647N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3257N3647N1
    Drive Type: RHD 6X4 Emission Standard: Euro 2
    Engine: WD615.69, 336HP Cargo Body: 5800*2300*1500mm
    Loading Capacity: 30-40tons Cabin: A7-P
    Thickness Of Cargo Body: Floor: 8mm, Side: 6mm Transmission: HW15710

    SINOTRUK HOWO A7 Dump Truck 30 - 40tons RHD 6X4 for Construction material loading



    Description:

    SINOTRUK HOWO A7 Dump Truck 30 - 40tons RHD 6X4 for Construction material loading

    From design concept to configuration, from the atmosphere to beautiful and practical and reliable, from the economy to the safety, comfortable, convenient, China's newly launched HOWO-A7 heavy truck reflects the product development strategy China's one step ahead. As the crystal China heavy truck "technology leading strategy", HOWO-A7 has not only become the pinnacle of domestic heavy truck also, will lead the China heavy truck industry to quickly advanced level in the world.



    HOWO-A7 series heavy truck is China's new generation of heavy truck, with more than 130 patents. The latest technology development lasted more than a year, more than two years of repeated experiments, the experimental car more than 50 vehicles under various extreme conditions of excellence HOWO-A7, thoroughly tempered, with high performance, high quality, high technology content, excellent quality the domestic heavy truck has reached a new level of hitherto unknown, will subvert the people's traditional cognition of domestic heavy truck fundamentally.



    It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works

    optional of driving axle: HC16 or AC16,

    Equipped with Euro2, Euro3 and Euro4 emission standard engine.

    Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 etc. Power range: 266PS -420PS.





    Specifications:




    SINOTRUK HOWO A7 Dump Truck 30 - 40tons RHD 6X4 for Construction material loading
    Model ZZ3257N3847N1
    Drive Type 8×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

    air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1)Is to maximize the interests of users as the design concept of the HOWO-A7 heavy truck, selection of the world first-class level of each assembly and electronic information system,

    2)ride comfort, safety, reliability and electronic level reached the highest international level.

    3)Optimized cargo body structure,light weight,high rigidity,large loading capacity

    4)Using the high strength steel,it has long service life

    5)Optimized the sealing structure has the better sealing effect.

    6)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running

     efficiency.

    7)Multiple box structures and device selections

    8)with all kinds of truck model, which can fulfil your requirement
    9)the key parts adopt the world's top technology products
    10)based on strong technical support and top level technology make the trucks with high

    quality and more reliable

    11)low fuel consumption
    12) strong enough engine

    13)competive price, cost-effective
    14)quick and efficient spare parts supply bring you more convenient
    15)fast delivery time, we can arange production according to your needs exactly and

    quickly

    16) professional import and export dealing precedure, make customs clearance more high efficiency
