Place of Origin: | China |
Brand Name: | SINOTRUK HOWO A7 |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257N3447N1 |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | USD38000-USD42000/UNIT)negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3,000units per month |
Product Name: | Tipper Dump Truck | Model: | ZZ3257N3447N1 |
---|---|---|---|
Drive Type: | RHD 6X4 | Emission Standard: | Euro 2 |
Engine: | WD615.47, 371HP | Cargo Body: | 5400*2300*1400mm |
Loading Capacity: | 30-40tons | Cabin: | A7-P |
Transmission: | HW19710, 10 Forwards, 2 Backwards | ||
Highlight: | heavy dump truck,commercial dump truck |

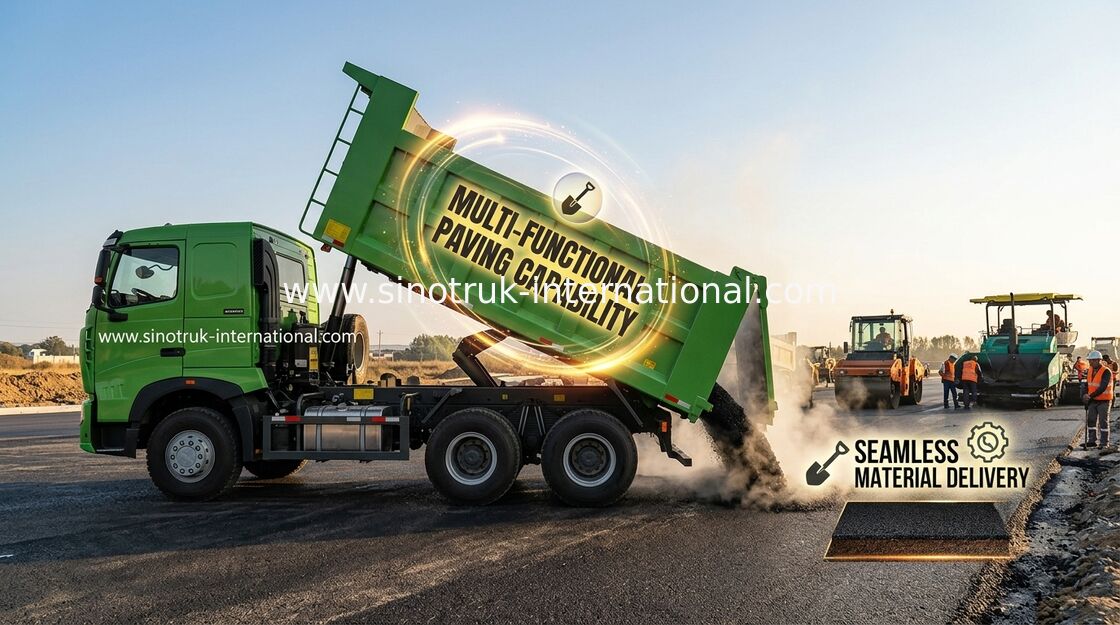

Dump Truck SINOTRUK HOWO A7 30 - 40tons RHD 6X4 air suspension, electronic key
Description:
Dump Truck SINOTRUK HOWO A7 30 - 40tons RHD 6X4 air suspension, electronic key
The intelligent hand HOWO-A7 heavy truck standard from one AMT, is the latest achievement of China heavy duty truck and WABCO company to develop, has opened a new era Chinese heavy truck technology. Chinese truck for product registration "intelligent truck tiptronic" Chinese registered trademark "Smartshift" and the registered trademark. Running as one has rich driving experience of older drivers in operation, make Chinese users enjoy advanced international high-end heavy truck operator comfort. According to experts, from the design perspective, and automobile industry AT, AMT mechanical gearbox through electronic control automatic shifting, generally more fuel-efficient 3-5%. manual box.
AMT is the international high-end heavy truck standard technology, 58% European truck equipped with automatic shift mode AMT.AMT gearbox is provided based on maximum power output, and with manual shift function, crawling function and economic function.
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
optional of driving axle: HC16 or AC16,
Equipped with Euro2, Euro3 and Euro4 emission standard engine.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 etc. Power range: 266PS -420PS.
Specifications:
Dump Truck SINOTRUK HOWO A7 Front Lifting Hydraulic system 30 - 40tons RHD 6X4 | ||||
Model | ZZ3257N3447N1 | |||
Drive Type | 8×4 | |||
Engine |
|
|||
Cabin | A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3400+1350(mm) | |||
Overall dimension | 8175×2496×3450(mm) | |||
Cargo body | 5400×2300×1400(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12300(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1) Strong technology development strength and product supporting system
2) AMT transmission
3)competive price, cost-effective
4)quick and efficient spare parts supply bring you more convenient
5)fast delivery time, we can arange production according to your needs exactly and
quickly
6) professional import and export dealing precedure, make customs clearance more high efficiency
7)low fuel consumption
8) strong enough engine
9)with all kinds of truck model, which can fulfil your requirement
10)the key parts adopt the world's top technology products
11)based on strong technical support and top level technology make the trucks with high
quality and more reliable
12)Optimized cargo body structure,light weight,high rigidity,large loading capacity
13)Using the high strength steel,it has long service life
14)Optimized the sealing structure has the better sealing effect.
15)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and
running efficiency.
16)Multiple box structures and device selections
