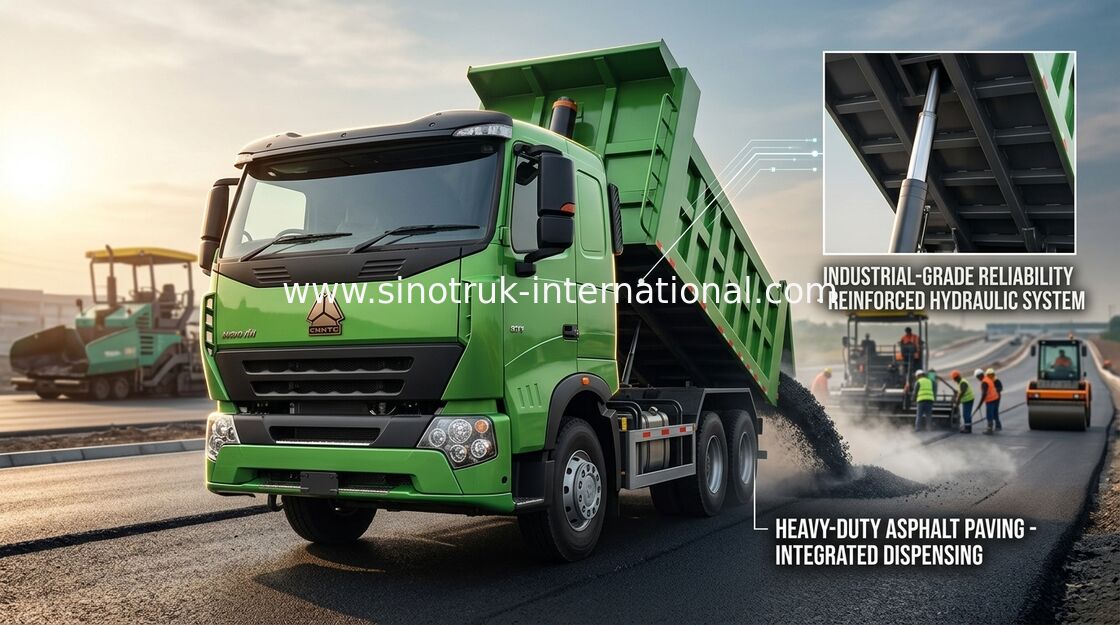

HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color

HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color

    • HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
    • HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
    • HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
    • HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
  • HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO A7
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257N3447N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3257N3447N1
    Drive Type: RHD 6X4 Emission Standard: Euro 2
    Engine: WD615.69, 336HP Cargo Body: 5400*2300*1300mm
    Loading Capacity: 30-40tons Cabin: A7-P
    Thickness Of Cargo Body: Bottom:12mm, Side:10mm Hydraulic System: HYVA Brand Hydraulic Cylinder

    Tipper Dump Truck HOWO A7 30 - 40tons RHD 6X4 air suspension, Lemon Green color



    Description:

    Tipper Dump Truck HOWO A7 30 - 40tons RHD 6X4 air suspension, Lemon Green color

    HOWO-A7 series products are oriented to the international market and domestic high-end heavy truck market. In the process of design and development, in order to ensure success in global competition, China's collaborative design in important parts with the international first-class supplier in accordance with international key assembly design standards, combined with China's actual characteristics of joint scientific research and development, special facilities, out of a a new international technology cooperation.



    HOWO-A7 series of products using the German ZF absorption steering machine and WABCO double cylinder oil pump, air compressor, car brake valve and AMT transmission and SmartShift intelligent hand joint design since the development of shift system, Germany VOSS brake interface, MANN-HUMMEL fuel filter and plastic air filter system, SABO damper BEHR cooling system, VDO + instrument control system, VDO audio system, WESTFALIA exhaust bellows, HENDRICKSON rubber suspension and other world-class technology and products at the same time. With years of experience and Chinese heavy truck market for accurate understanding, developed with independent intellectual property Chinese many outstanding heavy truck assembly.









    Specifications:




    Dump Truck SINOTRUK HOWO A7 Front Lifting Hydraulic system 30 - 40tons RHD 6X4
    Model ZZ3257N3447N1
    Drive Type 8×4
    Engine

    WD615.69 , 336HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW15710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

    air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8175×2496×3450(mm)
    Cargo body 5400×2300×1300(mm),Bottom:12mm, Side:10mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1)SMARTSHIFT-AMT intelligent shift hand self integrated transmission
    2)quick and efficient spare parts supply bring you more convenient

    3)low fuel consumption
    4) strong enough engine

    5)with all kinds of truck model, which can fulfil your requirement
    6)the key parts adopt the world's top technology products
    7)based on strong technical support and top level technology make the trucks with high

    quality and more reliable

    8)Optimized cargo body structure,light weight,high rigidity,large loading capacity

    9)Using the high strength steel,it has long service life

    10)Optimized the sealing structure has the better sealing effect.

    11)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

    running efficiency.



    HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green ColorHOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
