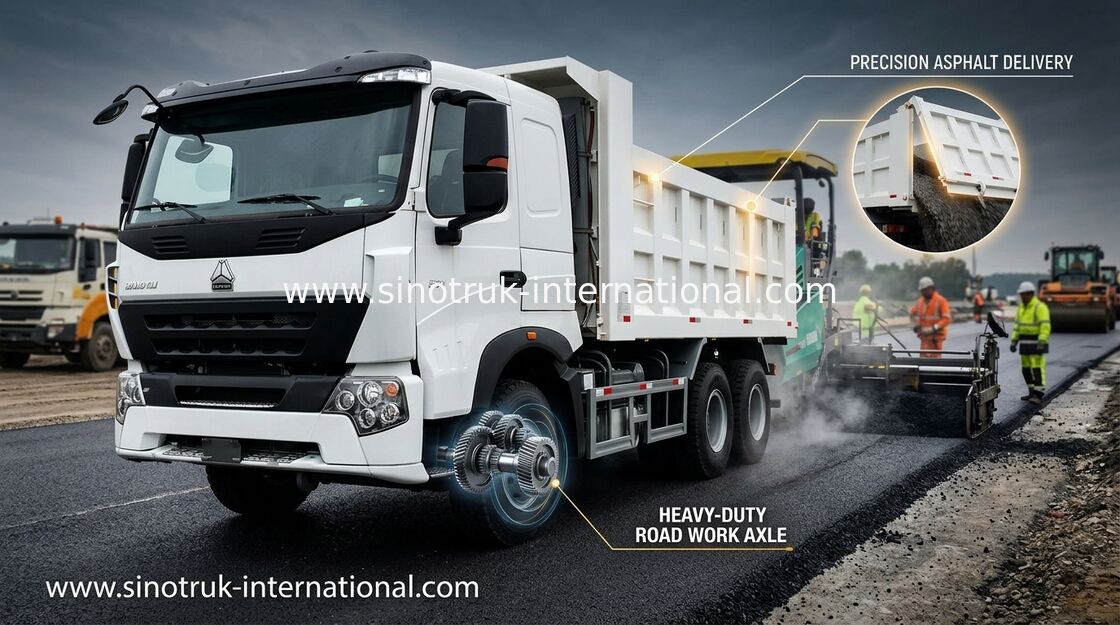

White Color Sinotruk Howo Dump Truck High Fuel Efficiency 30 - 40 Tons For Mining

White Color Sinotruk Howo Dump Truck High Fuel Efficiency 30 - 40 Tons For Mining

    • White Color Sinotruk Howo Dump Truck High Fuel Efficiency 30 - 40 Tons For Mining
    • White Color Sinotruk Howo Dump Truck High Fuel Efficiency 30 - 40 Tons For Mining
    • White Color Sinotruk Howo Dump Truck High Fuel Efficiency 30 - 40 Tons For Mining
    • White Color Sinotruk Howo Dump Truck High Fuel Efficiency 30 - 40 Tons For Mining
  • White Color Sinotruk Howo Dump Truck High Fuel Efficiency 30 - 40 Tons For Mining

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO A7
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257N3847N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3257N3847N1
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.69, 336HP Cargo Body: 5800*2300*1500mm
    Loading Capacity: 30-40tons Cabin: A7-W
    Thickness Of Cargo Body: Bottom: 16mm Side:12mm Hydraulic System: China Brand

    SINOTRUK HOWO A7 Dump Truck LHD 6x4 White color 30 - 40tons for Mining business



    Description:

    SMARTSHIFT-AMT intelligent shift hand self integrated transmission

    SMARTSHIFT literally translated as "clever shift".AMT is one of the world's high-end heavy truck standard technology, Europe 50% trucks equipped with AMT gearbox. China launched heavy truck SMARTSHIFT-AMT make Chinese users can also enjoy international high-end heavy truck operator comfort, which will Chinese heavy truck up to the world advanced technology of heavy truck Chinese (Asia leading ranks! Heavy truck into the automatic shift times.)



    China heavy truck SMARTSHIFT transmission is 16 speed control, automatic transmission, like a highly skilled driver driving a truck, with higher fuel efficiency.

    AMT working principle and structure is completely different from the car AT. car with AT through the turbine driven hydraulic oil, hydraulic oil to drive the mechanical device model, the efficiency of large losses in oil driven, it is generally more than one hundred kilometers 1-2 liters of fuel consumption of a manual transmission.AMT mechanical gearbox by electronic control automatic shifting, the shift also like a manual transmission, to speed up the separation of the clutch through the engine or transmission braking, meshed synchronization, automatic switching of the most appropriate gear, generally more fuel-efficient 3%-5%. manual box



    Applicable to all kinds of conditions. The use of China SMARTSHIFT heavy truck, the driver can concentrate on driving and the surrounding traffic environment, timely response. Help the new driver to advanced driver level. The driver can still switch to manual. The manual shift mode, use the control handle to select proper position. The application of SMARTSHIFT truck without clutch the pedal shift is fully automatic.

    High reliability. All AMT hardware in Europe for many years and mature. The use of heavy truck









    Specifications:




    SINOTRUK HOWO A7 Dump Truck LHD 6x4 White color 30 - 40tons for Mining business
    Model ZZ3257N3847N1
    Drive Type 8×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

     air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1)fast delivery time, we can arange production according to your needs exactly and

    quickly

    2) professional import and export dealing precedure, make customs clearance more high efficiency

    3)competive price, cost-effective
    4)quick and efficient spare parts supply bring you more convenient

    5)low fuel consumption
    6) strong enough engine

    7)Optimized cargo body structure,light weight,high rigidity,large loading capacity

    8)Using the high strength steel,it has long service life

    9)Optimized the sealing structure has the better sealing effect.

    10)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

    running efficiency.

    11)Multiple box structures and device selections

    12)with all kinds of truck model, which can fulfil your requirement
    13)the key parts adopt the world's top technology products
    14)based on strong technical support and top level technology make the trucks with high

    quality and more reliable
