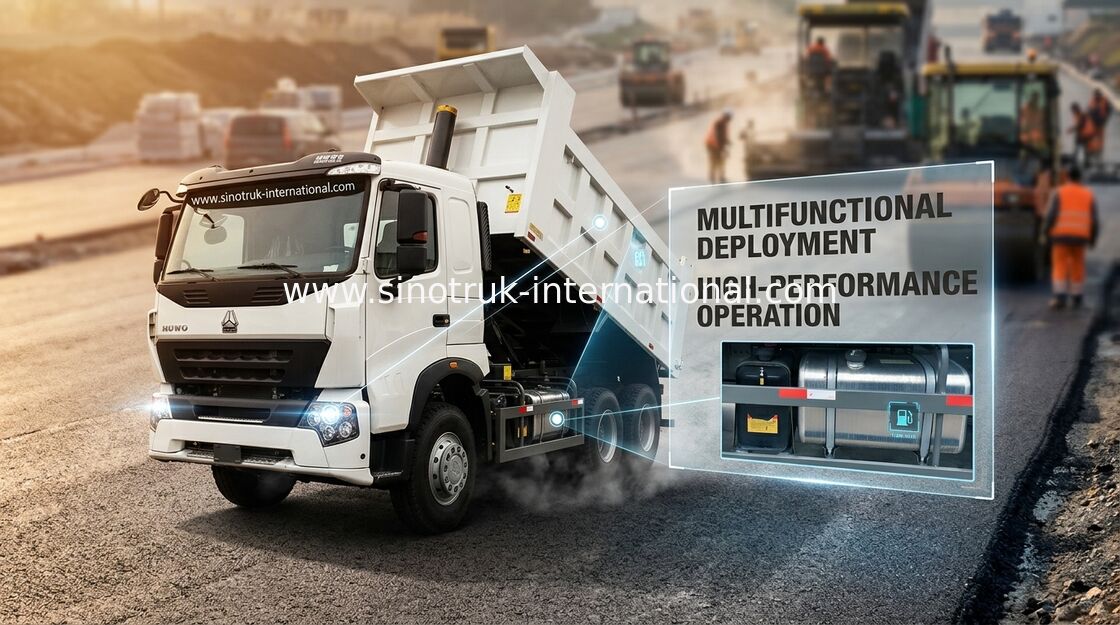

LHD 371HP Sinotruk Howo Dump Truck Tipper Dump Truck 6200 * 2300 * 1600mm Cargo Body

LHD 371HP Sinotruk Howo Dump Truck Tipper Dump Truck 6200 * 2300 * 1600mm Cargo Body

    • LHD 371HP Sinotruk Howo Dump Truck Tipper Dump Truck 6200 * 2300 * 1600mm Cargo Body
    • LHD 371HP Sinotruk Howo Dump Truck Tipper Dump Truck 6200 * 2300 * 1600mm Cargo Body
    • LHD 371HP Sinotruk Howo Dump Truck Tipper Dump Truck 6200 * 2300 * 1600mm Cargo Body
    • LHD 371HP Sinotruk Howo Dump Truck Tipper Dump Truck 6200 * 2300 * 1600mm Cargo Body
  • LHD 371HP Sinotruk Howo Dump Truck Tipper Dump Truck 6200 * 2300 * 1600mm Cargo Body

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO A7
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257N4347N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3257N4347N1
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Cargo Body: 6200*2300*1600mm
    Loading Capacity: 30-40tons Cabin: A7-W
    Hydraulic System: HYVA Europe Brand

    SINOTRUK HOWO A7 Tipper Truck LHD 371HP 30 - 40tons for Loading Construction goods



    Description:

    SINOTRUK HOWO A7 Tipper Truck LHD 371HP 30 - 40tons for Loading Construction goods

    This type product , with features of reliable structure , high loading capacity which can

    load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide

    acceplication.



    By using the finite element software and related engineering optimization design of new technology (front) axle consists of 7 tons and 9 tons in two categories:



    New 7 tons of heavy truck front axle is China newly developed special highway vehicle axle, bearing better than similar domestic models, stability and steering flexibility, by applying the new processing technology, the weight is reduced, the reliability is increased.



    9 tons axle is currently has the highest load of the front axle weight, the same as the original HOWO front, after a lot of experiments show that the maneuverability and reliability have reached the best state.

    Chinese's new 7 tons, 9 tons are standard front disc brakes, this is the application of new technology of domestic heavy truck tractor unique, with Europe and the latest heavy truck configurations are exactly the same.



    Drive axle.HW12,16 series single mature and reliable, is China CNHTC developed close to the double level in the world the biggest and strongest single reduction bridge. Continue to improve the technology in recent years, the rear axle assembly technology is mature, durable.HW16 3.73,4.22 ratio; HW12 ratio 3.91,4.875,5.833



    ST16, HC16 wheel side speed reducer.HC16 casting axle housing for engineering vehicles, speed ratio 4.42,4.8,5.73



    ST16 stamping axle housing can be used for highway vehicles, speed ratio 3.93,4.42,4.8,5.11,5.73









    Specifications:




    SINOTRUK HOWO A7 Tipper Truck LHD 371HP 30 - 40tons for Loading Construction goods
    Model ZZ3257N3847N1
    Drive Type 8×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

     air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1)fast delivery time, we can arange production according to your needs exactly and

    quickly

    2) professional import and export dealing precedure, make customs clearance more high efficiency

    3)competive price, cost-effective

    4)low fuel consumption
    5) strong enough engine

    6)Optimized cargo body structure,light weight,high rigidity,large loading capacity

    7)Using the high strength steel,it has long service life

    8)Optimized the sealing structure has the better sealing effect.

    9)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

    running efficiency.

    10)Multiple box structures and device selections

    11)with all kinds of truck model, which can fulfil your requirement
    12)the key parts adopt the world's top technology products
    13)based on strong technical support and top level technology make the trucks with high

    quality and more reliable

    14)quick and efficient spare parts supply bring you more convenient
