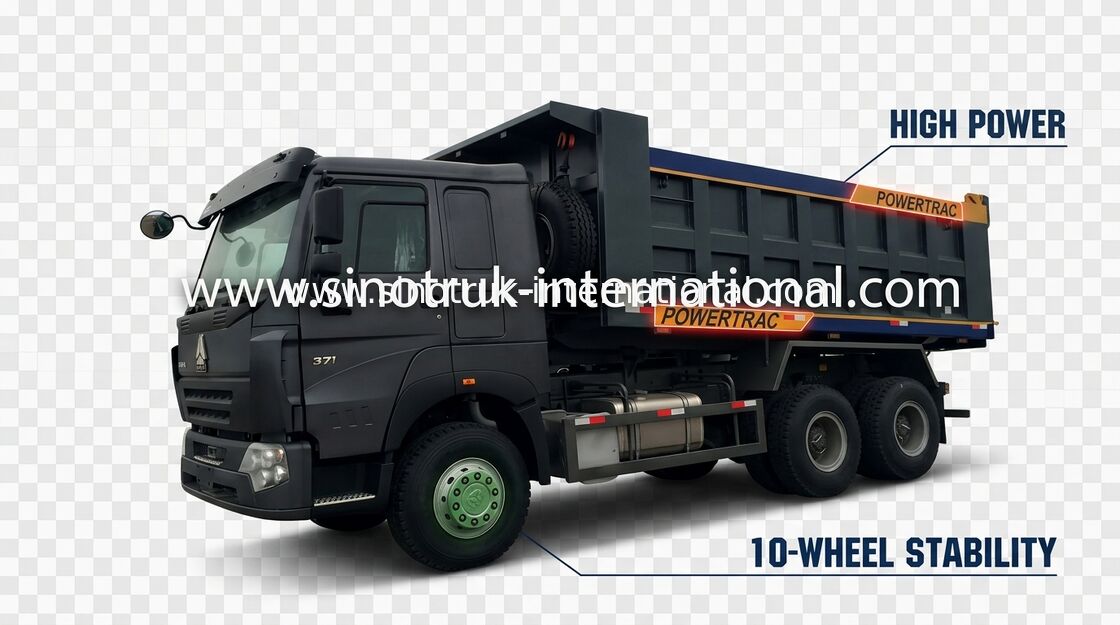

Loading Construction Goods Tipper Dump Truck LHD 371HP 30 - 40 Tons Heavy Dump Truck

Loading Construction Goods Tipper Dump Truck LHD 371HP 30 - 40 Tons Heavy Dump Truck

    • Loading Construction Goods Tipper Dump Truck LHD 371HP 30 - 40 Tons Heavy Dump Truck
    • Loading Construction Goods Tipper Dump Truck LHD 371HP 30 - 40 Tons Heavy Dump Truck
    • Loading Construction Goods Tipper Dump Truck LHD 371HP 30 - 40 Tons Heavy Dump Truck
  • Loading Construction Goods Tipper Dump Truck LHD 371HP 30 - 40 Tons Heavy Dump Truck

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOKA
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3255N3846B1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3255N3846B1
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Cargo Body: 5800*2300*1500mm
    Loading Capacity: 30-40tons Cabin: H17

    SINOTRUK HOKA Dump Truck LHD 371HP 30 - 40tons for Loading Construction goods



    Description:

    SINOTRUK HOKA Dump Truck LHD 371HP 30 - 40tons for Loading Construction goods

    HOKA brand is the Leader of Heavy Duty Truck Industry Driving King On The Road.

    High Quality , More Lighter . High Level Comfortable:Cabin 4 point full -floating air

    suspension ,adjustable steering wheel with various heightsand angles.air suspension seat,

    Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM

    Gearbox ,bunk with AC.



    The disc brake is first applied to the domestic heavy truck. Disc brake is standard world. Compared to the high-end heavy truck brake drum brake has the advantages of high speed, heavy load and high braking efficiency; brake is more smooth and comfortable; good heat dissipation, the prominent advantages of replacing the brake pads more convenient.



    China heavy truck brake disc is a completely independent intellectual property rights of the patent product. The advantages of compact structure, light weight, brake clearance automatic adjustment, short braking distance, braking efficiency is prominent. Effectively reduce the tire braking torque output stable. At the same time, smooth braking, effectively solves the brake head and braking deviation phenomenon. Service life is far higher than that of the drum brake.



    Chinese CNHTC developed disc brake China technology to improve the grade of the truck in a big way.

    Pull type diaphragm spring clutch. The only all German imports of raw materials and new type diaphragm spring friction parts. Driven disc torsional damper with large torsion angle, the design of small torsion stiffness, the hub machining by laser technology is advanced. The vehicle road test through 3 million life test and demanding products, the performance and quality of the work force uniformity reached the international advanced level.











    Specifications:




    SINOTRUK HOKA Dump Truck LHD 371HP 30 - 40tons for Loading Construction goods
    Model ZZ3257N3847N1
    Drive Type 8×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

     air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1)fast delivery time, we can arange production according to your needs exactly and

    quickly

    2) professional import and export dealing precedure, make customs clearance more high efficiency

    3)competive price, cost-effective

    4)low fuel consumption
    5) strong enough engine

    6)Optimized cargo body structure,light weight,high rigidity,large loading capacity

    7)Using the high strength steel,it has long service life

    8)Optimized the sealing structure has the better sealing effect.

    9)Multiple box structures and device selections

    9)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

    running efficiency.

    10)with all kinds of truck model, which can fulfil your requirement
    12)the key parts adopt the world's top technology products
    13)based on strong technical support and top level technology make the trucks with high

    quality and more reliable

    14)quick and efficient spare parts supply bring you more convenient



    Loading Construction Goods Tipper Dump Truck LHD 371HP 30 - 40 Tons Heavy Dump Truck
