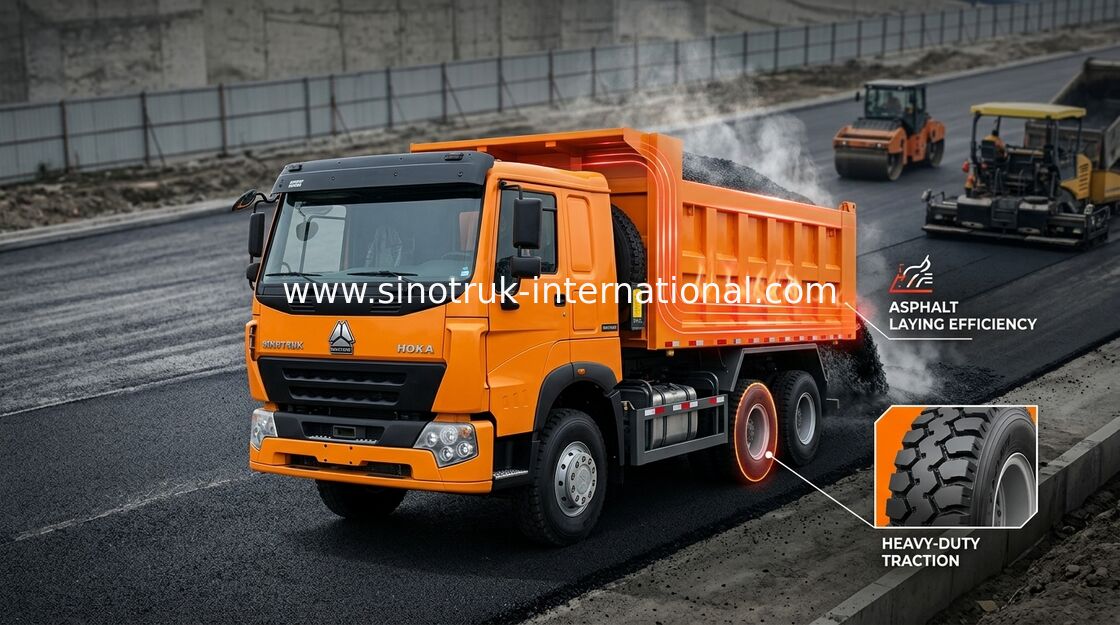

30 - 40 Tons SINOTRUK Dump Truck LHD 371HP 6X4 For Loading Construction Material

30 - 40 Tons SINOTRUK Dump Truck LHD 371HP 6X4 For Loading Construction Material

    • 30 - 40 Tons SINOTRUK Dump Truck LHD 371HP 6X4 For Loading Construction Material
    • 30 - 40 Tons SINOTRUK Dump Truck LHD 371HP 6X4 For Loading Construction Material
    • 30 - 40 Tons SINOTRUK Dump Truck LHD 371HP 6X4 For Loading Construction Material
    • 30 - 40 Tons SINOTRUK Dump Truck LHD 371HP 6X4 For Loading Construction Material
  • 30 - 40 Tons SINOTRUK Dump Truck LHD 371HP 6X4 For Loading Construction Material

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOKA
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3255N3846B1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3255N3846B1
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Cargo Body: 5800*2300*1500mm
    Loading Capacity: 30-40tons Transmission: HW19710
    Steering: ZF Brand

    SINOTRUK Dump Truck LHD 371HP 6X4 30 - 40tons for Loading Construction material



    Description:

    SINOTRUK HOKA Dump Truck LHD 371HP 30 - 40tons for Loading Construction goods

    HOKA brand is the Leader of Heavy Duty Truck Industry Driving King On The Road.

    High Quality , More Lighter . High Level Comfortable:Cabin 4 point full -floating air

    suspension ,adjustable steering wheel with various heightsand angles.air suspension seat,

    Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM

    Gearbox ,bunk with AC.



    Primer and topcoat coating in Chinese's independent research and development of the new paint line, advanced equipment and high-quality paint makes the vehicle paint life, cleanliness, brightness, corrosion resistance and adhesion have reached or exceeded the international level.



    The beautiful and the atmosphere, a large windscreen gives you a broader view; the main combination of rearview mirror, rearview mirror and wide-angle rearview mirror with electric adjustment function and electric heating function. The drag coefficient as low as 0.57, significantly reduce vehicle fuel consumption, to reach the world advanced level.



    The combined design of the new headlight assembly, the headlights, headlight, position lamps, auxiliary high beam headlight, fog light as a whole, saves the installation space. Lamps scattered layout, modeling novel, visual effect is concise and lively, provides a good view of the observation and for driving at night. The headlight dimming and lighting replace in the headlight rear connecting rod design using light regulating mechanism, a more accurate and convenient.



    The side of the streamline form to give a dynamic flow of people; the same channel with the spoiler to complement each other.













    Specifications:




    SINOTRUK HOKA Dump Truck LHD 371HP 30 - 40tons for Loading Construction goods
    Model ZZ3257N3847N1
    Drive Type 8×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

    air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1)fast delivery time, we can arange production according to your needs exactly and

    quickly

    2) professional import and export dealing precedure, make customs clearance more high efficiency

    3)competive price, cost-effective

    4)low fuel consumption
    5) strong enough engine

    6)Optimized cargo body structure,light weight,high rigidity,large loading capacity

    7)Using the high strength steel,it has long service life

    8)Optimized the sealing structure has the better sealing effect.

    9)Multiple box structures and device selections

    9)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

    running efficiency.

    10)with all kinds of truck model, which can fulfil your requirement
    12)the key parts adopt the world's top technology products
    13)based on strong technical support and top level technology make the trucks with high

    quality and more reliable

    14)quick and efficient spare parts supply bring you more convenient



    30 - 40 Tons SINOTRUK Dump Truck LHD 371HP 6X4 For Loading Construction Material30 - 40 Tons SINOTRUK Dump Truck LHD 371HP 6X4 For Loading Construction Material
