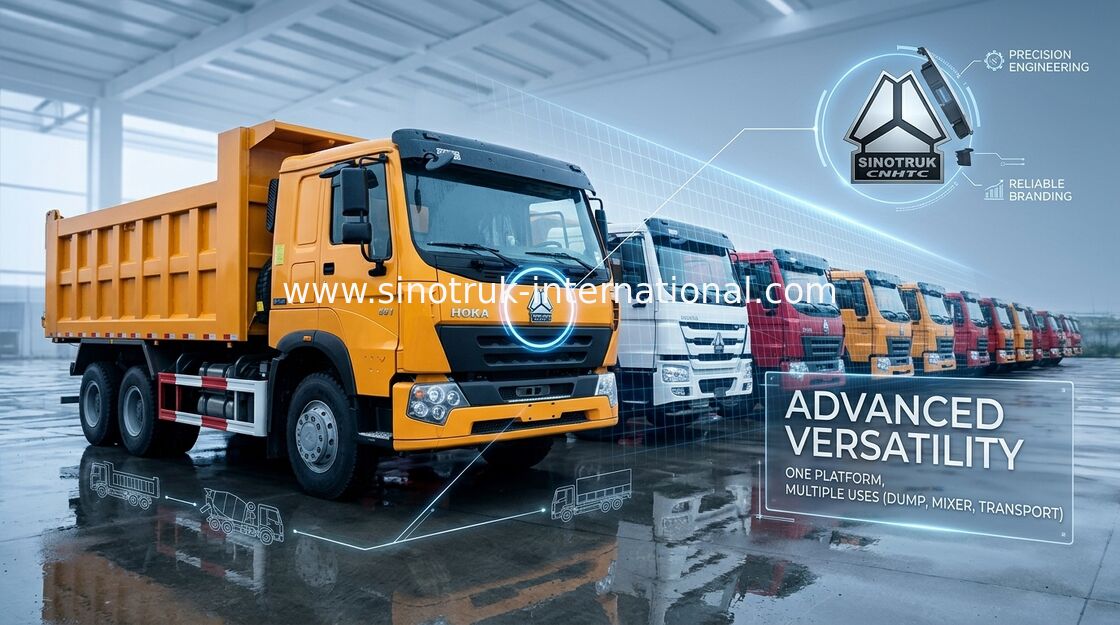

LHD 6X4 Heavy Duty Tipper Dump Truck 10 Wheels 30 - 40 Tons For Mining Industry

LHD 6X4 Heavy Duty Tipper Dump Truck 10 Wheels 30 - 40 Tons For Mining Industry

    • LHD 6X4 Heavy Duty Tipper Dump Truck 10 Wheels 30 - 40 Tons For Mining Industry
    • LHD 6X4 Heavy Duty Tipper Dump Truck 10 Wheels 30 - 40 Tons For Mining Industry
    • LHD 6X4 Heavy Duty Tipper Dump Truck 10 Wheels 30 - 40 Tons For Mining Industry
    • LHD 6X4 Heavy Duty Tipper Dump Truck 10 Wheels 30 - 40 Tons For Mining Industry
  • LHD 6X4 Heavy Duty Tipper Dump Truck 10 Wheels 30 - 40 Tons For Mining Industry

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOKA
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3255N3646B1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3255N3646B1
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Cargo Body: 5600*2300*1500mm
    Loading Capacity: 30-40tons Transmission: HW15710
    Steering: ZF Brand

    Tipper Dump Truck SINOTRUK LHD 371HP 10 wheels 30 - 40tons for Mining Industry



    Description:

    Tipper Dump Truck SINOTRUK LHD 371HP 10 wheels 30 - 40tons for Mining Industry

    HOKA brand is the Leader of Heavy Duty Truck Industry Driving King On The Road.

    High Quality , More Lighter . High Level Comfortable:Cabin 4 point full -floating air

    suspension ,adjustable steering wheel with various heightsand angles.air suspension seat,

    Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM

    Gearbox ,bunk with AC.



    The standard 400 liter Aluminum Alloy tank. Also optional 600 liter Aluminum Alloy large tank. 600 liters fuel tank (with large unilateral combined pedal) high strength lightweight materials for the new international standard of heavy truck, the A7 tractor has more than 1500 kilometers of super endurance.

    Cab interior

    Warm interiors make driving more comfortable environment inside the room. The whole wraparound dashboard, all the joystick layout, at your fingertips.



    Primer and topcoat coating in Chinese's independent research and development of the new paint line, advanced equipment and high-quality paint makes the vehicle paint life, cleanliness, brightness, corrosion resistance and adhesion have reached or exceeded the international level.





    Specifications:




    Tipper Dump Truck SINOTRUK LHD 371HP 10 wheels 30 - 40tons for Mining Industry
    Model ZZ3257N3647B1
    Drive Type 6×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW15710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

    air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3600+1350(mm)
    Overall dimension 8375×2496×3450(mm)
    Cargo body 5600×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1)fast delivery time, we can arange production according to your needs exactly and

    quickly

    2) professional import and export dealing precedure, make customs clearance more high efficiency

    3)competive price, cost-effective

    4)low fuel consumption
    5) strong enough engine

    6)with all kinds of truck model, which can fulfil your requirement
    7)the key parts adopt the world's top technology products
    8)based on strong technical support and top level technology make the trucks with high

    quality and more reliable

    9)quick and efficient spare parts supply bring you more convenient

    10)Optimized cargo body structure,light weight,high rigidity,large loading capacity

    11)Using the high strength steel,it has long service life

    12)Optimized the sealing structure has the better sealing effect.

    13)Multiple box structures and device selections

    14)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

    running efficiency.
