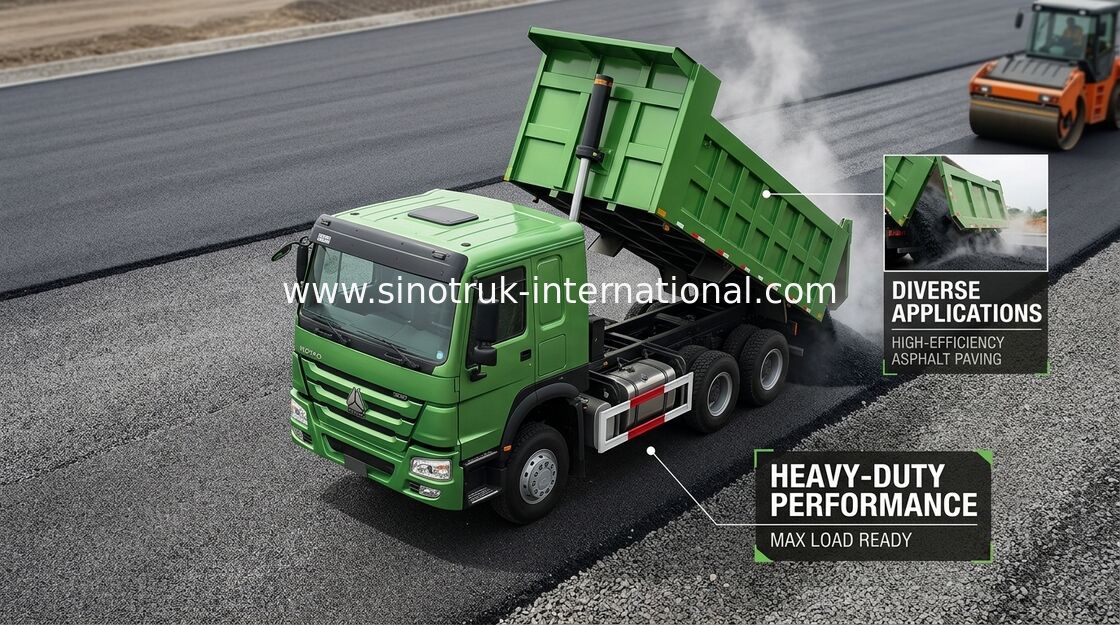

SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck

SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck

    • SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
    • SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
    • SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
    • SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
  • SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3317N3567W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD45000-USD48000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3317N3567W
    Drive Type: LHD 8X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Cargo Body: 7300*2300*1500mm
    Loading Capacity: 40-60tons

    SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31tons 28CBM for Mining business



    Description:



    SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31tons 28CBM for Mining business

    In the painting workshop, the reporter through the big bright glass, see the process of painting production line operation. According to the introduction, this painting production line investment of up to 250 million yuan, the vehicle cab recognition system can realize automatic identification, information statistics management and finish the whole process of separation, automatic production line monitoring management information system. And the joint production scheduling management system, the automation level is higher.



    "This line reflects the green, energy saving, environmental protection, the concept of health." the paint shop responsible person told reporters that the characteristics of the painting line is spraying high speed, wide range, excellent quality, high utilization rate of coating pretreatment. The non phosphorus degreasing agent and low residue phosphating agent, the coating of phosphorus pollution the lowest. The application of environmental friendly electrophoretic coating, large angle combination of Japanese blessing fixture swing, can ensure good anti-corrosion performance of the cab. The inside and outside the multi-stage filtration countercurrent washing process, realize the efficient recycling and cleaning water electrophoretic paint near zero pollution emissions.





    Specification:



    SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31tons 28CBM for Mining business

    Model ZZ3317N3567W
    Drive Type 8×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 1800+3500+1350(mm)
    Overall dimension 10445×2496×3450(mm)
    Cargo body

    7500×2300×1500(mm),Bottom:8mm, Side:6mm

    The curb weight 15120(Kg)
    Gross weight 31000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.




    Applications:



    It used for Mining industry, Construction business, docks and so on.



    Competitive Advantage:



    1)usually choose the standard cargo body structure
    2)using the good quality steel plate, make it has a long service life
    3)The optimized hydraulic control system helps to avoid wrong operation, it has higher

    safety and  running efficiency.
    4)excellant apperance of cabin, safety, reliable

    5)competive price, cost-effective
    6)quick and efficient spare parts supply bring you more convenient

    7)fast delivery time, we can arange production according to your needs exactly and

    quickly

    8) professional import and export dealing precedure, make customs clearance more high efficiency

    9)low fuel consumption
    10) strong enough engine
    11)with all kinds of truck model, which can fulfil your requirements
    12)the key parts adopt the world's top technology products
    13)based on strong technical support and top level technology make the trucks with high

    quality and more reliable


    SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump TruckSINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
