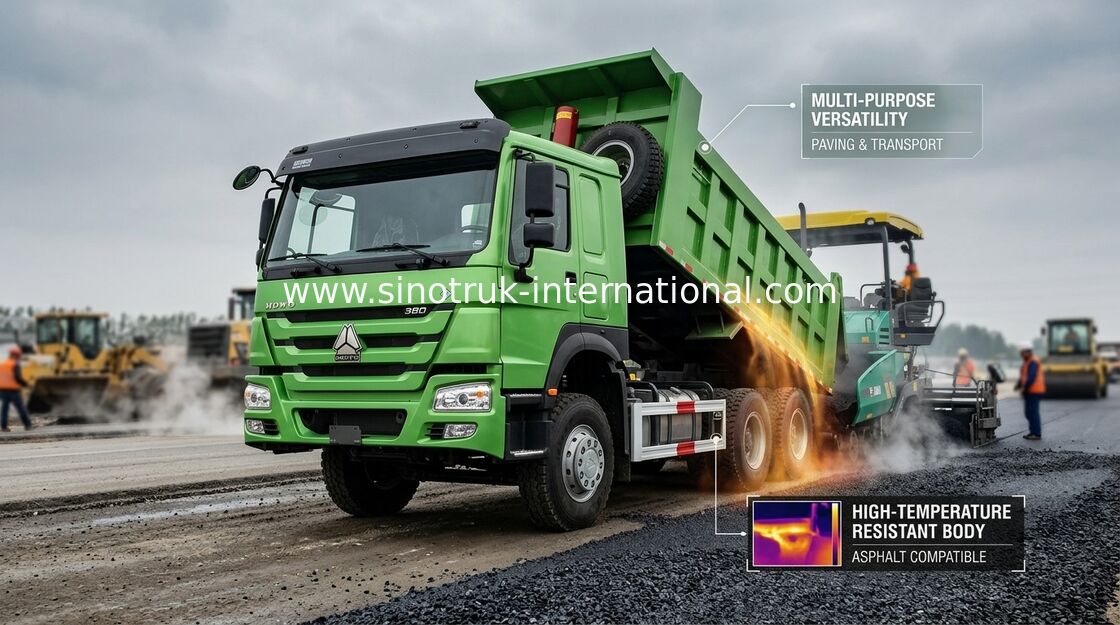

Green Color Chassis 371HP Tipper Dump Truck 12 Wheels LHD 60 - 70 Tons 28CBM

Green Color Chassis 371HP Tipper Dump Truck 12 Wheels LHD 60 - 70 Tons 28CBM

    • Green Color Chassis 371HP Tipper Dump Truck 12 Wheels LHD 60 - 70 Tons 28CBM
    • Green Color Chassis 371HP Tipper Dump Truck 12 Wheels LHD 60 - 70 Tons 28CBM
    • Green Color Chassis 371HP Tipper Dump Truck 12 Wheels LHD 60 - 70 Tons 28CBM
    • Green Color Chassis 371HP Tipper Dump Truck 12 Wheels LHD 60 - 70 Tons 28CBM
  • Green Color Chassis 371HP Tipper Dump Truck 12 Wheels LHD 60 - 70 Tons 28CBM

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3317N3867W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD45000-USD48000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3317N3867W
    Drive Type: LHD 8X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Cargo Body: 7800*2300*1500mm
    Loading Capacity: 40-60tons Transmission: HW19710

    SINOTRUK HOWO Dump Truck Green color Chassis 371HP 12 Wheels LHD 60-70tons 28CBM



    Description:



    SINOTRUK HOWO Dump Truck Green color Chassis 371HP 12 Wheels LHD 60-70tons 28CBM

    The process layout of the plant is very effective, creating a domestic painting line investment utilization, production area utilization rate and utilization rate of the space. The best record for the scene told reporters that the painting paint shop every 4 minutes to complete a cab.



    In early 2010, Chinese Zhongqi and Venezuelan National Oil Co signed a 750 HOWO A7 tractor export contracts, the first batch of 500 tractor on the afternoon of April 27th shipment to the sea; but in China, HOWO A7 has also been recognized by the market, sales growth, started to enter the market maturity.

    Because the HOWO A7 market mainly by tractor, HOWO A7 will greatly improve the China dump truck, status of engineering vehicle proportion is far greater than the proportion of the road tractor, and change the market structure Chinese heavy truck





    Specification:



    SINOTRUK HOWO Dump Truck Green color Chassis 371HP 12 Wheels LHD 60-70tons 28CBM

    Model ZZ3317N3867W
    Drive Type 8×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 1800+3800+1350(mm)
    Overall dimension 10445×2496×3450(mm)
    Cargo body

    7800×2300×1500(mm),Bottom:8mm, Side:6mm

    The curb weight 15120(Kg)
    Gross weight 31000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.




    Applications:



    It used for Mining industry, Construction business, docks and so on.



    Competitive Advantage:



    1)usually choose the standard cargo body structure
    2)using the good quality steel plate, make it has a long service life
    3)The optimized hydraulic control system helps to avoid wrong operation, it has higher

    safety and  running efficiency.
    4)excellant apperance of cabin, safety, reliable

    5)competive price, cost-effective
    6)quick and efficient spare parts supply bring you more convenient

    7)fast delivery time, we can arange production according to your needs exactly and

    quickly

    8) professional import and export dealing precedure, make customs clearance more high efficiency

    9)low fuel consumption
    10) strong enough engine
    11)with all kinds of truck model, which can fulfil your requirements
    12)the key parts adopt the world's top technology products
    13)based on strong technical support and top level technology make the trucks with high

    quality and more reliable
