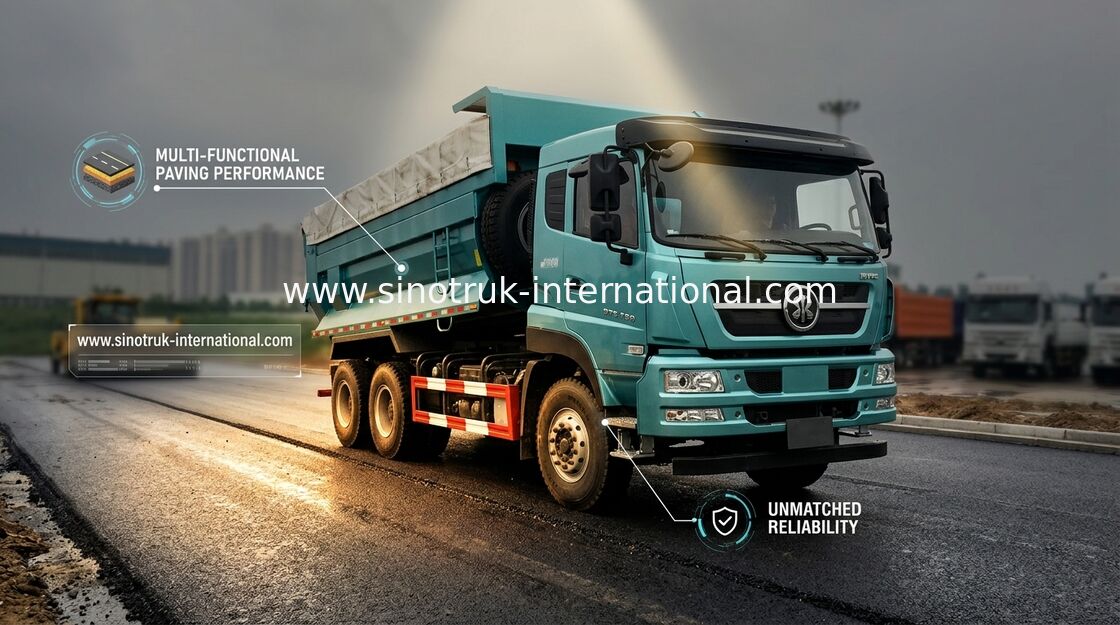

25 - 40 Tons CNHTC Tipper Dump Truck 371HP 10 Wheels For Mining / Municipal Works

25 - 40 Tons CNHTC Tipper Dump Truck 371HP 10 Wheels For Mining / Municipal Works

    • 25 - 40 Tons CNHTC Tipper Dump Truck 371HP 10 Wheels For Mining / Municipal Works
    • 25 - 40 Tons CNHTC Tipper Dump Truck 371HP 10 Wheels For Mining / Municipal Works
    • 25 - 40 Tons CNHTC Tipper Dump Truck 371HP 10 Wheels For Mining / Municipal Works
    • 25 - 40 Tons CNHTC Tipper Dump Truck 371HP 10 Wheels For Mining / Municipal Works
  • 25 - 40 Tons CNHTC Tipper Dump Truck 371HP 10 Wheels For Mining / Municipal Works

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257N3847A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD40000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3257N3847A
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.47, 371HP Cargo Body: 5800*2300*1500mm
    Loading Capacity: 30-40tons

    CNHTC Tipper Dump Truck 371HP 10wheels 25 - 40 Tons For Mining / Municipal Works



    Description:



    CNHTC Tipper Dump Truck 371HP 10wheels 25 - 40 Tons For Mining / Municipal Works

    According to the heavy vehicle industry sources, currently there are some heavy truck enterprises are also actively developing the automatic transmission, there are only a few hours before the assembly, brake drum, heavy truck, only Chinese. In the market, leading to market China heavy duty automatic transmission products, like the original EGR, which itself spawned and in the popularity of high-end Chinese heavy vehicle technology upgrade.



    In addition, HOWO equipped with German ZF steering gear and WABCO double cylinder oil pump, air compressor, SABO damper, MANN-HUMMEL fuel filter and plastic air filter system and other high-end configuration. Chinese heavy vehicle technology center, a director of Wang Yiping told reporters, HOWO original design is a European system, combined with the international well-known manufacturers upgrade in the HOWO base, the performance reached the international level.







    Specification:



    SINOTRUK HOWO Municipal Heavy Duty Tipper Dump Truck For public work transportation
    Model ZZ3257N3847A
    Drive Type 6×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

    with air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body

    5800×2300×1500(mm),Bottom:8mm, Side:6mm

    The curb weight 12200(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.




    Applications:



    It used for Mining industry, Construction business, docks and so on. Especially for public works.



    Competitive Advantage:



    1) professional import and export dealing precedure, make customs clearance more high efficiency

    2) using the high strength steel, make it has a long service life

    3) strong enough engine

    4) low fuel consumption

    5) with all kinds of truck model, which can fulfil your requirements

    6) excellant apperance of cabin, safety, reliable

    7) all kinds of cargo body structure can be designed and produced according to your request,

    make it have light curb weight , high rigidity , high loading capacity

    8) quick and efficient spare parts supply bring you more convenient

    9) fast delivery time, we can arange production according to your needs exactly and quickly

    10) competive price, cost-effective

    11) The optimized hydraulic control system helps to avoid wrong operation, it has higher

    safety and running efficiency.

    12) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

    13) The hydraulic sytem using HYVA brand or Domestic famouse brand



    25 - 40 Tons CNHTC Tipper Dump Truck 371HP 10 Wheels For Mining / Municipal Works25 - 40 Tons CNHTC Tipper Dump Truck 371HP 10 Wheels For Mining / Municipal Works
