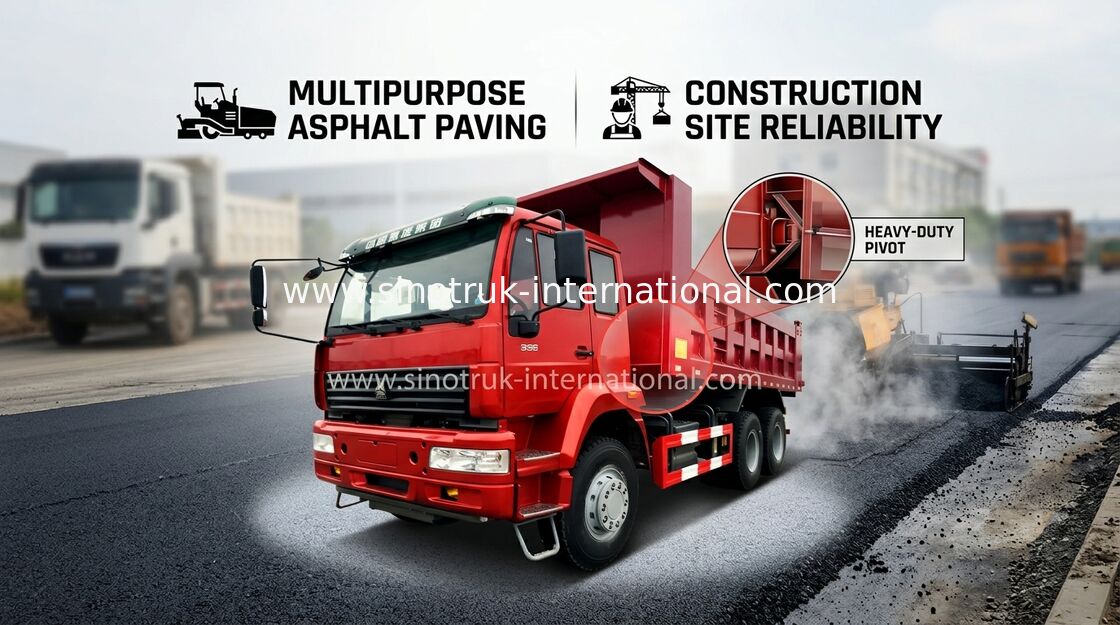

Medium Length LHD 6X4 Tipper Dump Truck SINOTRUK Golden Prince 290HP For Mining

    • Medium Length LHD 6X4 Tipper Dump Truck SINOTRUK Golden Prince 290HP For Mining
    • Medium Length LHD 6X4 Tipper Dump Truck SINOTRUK Golden Prince 290HP For Mining
    • Medium Length LHD 6X4 Tipper Dump Truck SINOTRUK Golden Prince 290HP For Mining
    • Medium Length LHD 6X4 Tipper Dump Truck SINOTRUK Golden Prince 290HP For Mining
  • Medium Length LHD 6X4 Tipper Dump Truck SINOTRUK Golden Prince 290HP For Mining

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK Golden Prince
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3251M3641W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD35000-USD37000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3251M3641W
    Drive Type: LHD 6X4 Emission Standard: Euro 2
    Engine: WD615.87, 290HP Cargo Body: 5400*2300*1500mm
    Loading Capacity: 30-40tons Thickness Of Cargo Body: Floor:8mm, Side:6mm
    Steering: D50, ZF Cabin: L2000 Medium Length

    Dump Truck SINOTRUK Golden Prince 290HP 25-30ton 10-25CBM ZZ3251M3641W for mining



    Description:



    SINOTRUK Golden Prince Tipper Truck 290HP 25-30tons 10-25CBM ZZ3251M3241W

    Golden Prince series Tipper Dump Truck adopt German MAN L2000 series cab technology,

    Kim Prince cab car LAN communication system features vehicle electrical system of the two generation of intelligent control system using the international standard (CAN bus), intelligent control system software integration in high technology (ACU), the digital control system (ASIC) control, the electrical system of the instrument function, and function of self driving.



    Golden Prince cab dust dust separation valve maintenance regularly to empty the intake pipe separation valve. In the accumulation of dust on my case, cleaning once a week. The dust special serious, are eliminated every day. To empty, compression rubber bellows seal. Accurate installation is very important.

    What are the cab parts: (1) the cab shell (2) cab frame (3) the whole car parts (4) trim (5) glass steel tank (6)







    Specification:



    Dump Truck SINOTRUK Golden Prince 290HP 25-30ton 10-25CBM ZZ3251M3641W for mining

    Model ZZ3251M3641W
    Drive Type 6×4
    Engine

    WD615.87 , 290HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin L2000  medium length cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW15710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering D50 hydraulic steering with power assistance.
    Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3600+1350(mm)
    Overall dimension 7920×2496×3250(mm)
    Cargo body

    5000×2300×1500(mm),Bottom:8mm, Side:6mm

    The curb weight 11550(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.




    Applications:



    It used for Mining industry, Construction business, docks and so on.



    Competitive Advantage:



    10)competive price, cost-effective

    2) Reliable quality

    3) good after sales service
    4)quick and efficient spare parts supply bring you more convenient
    5)fast delivery time, we can arange production according to your needs exactly and

    quickly

    6) professional import and export dealing precedure, make customs clearance more high efficiency

    7)all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
    8)using the high strength steel, make it has a long service life
    9)we can do the designs according to the your requirement and idea.
    10)we can offer you the high quality & reasionalble price
    11)we can offer your a good after-sell service
    12)we have strong professinal design team
    13)promptly delivery. small order is welcome
    14)the key parts adopt the world's top technology products
    15)based on strong technical support and top level technology make the trucks with high

    quality and more reliable
