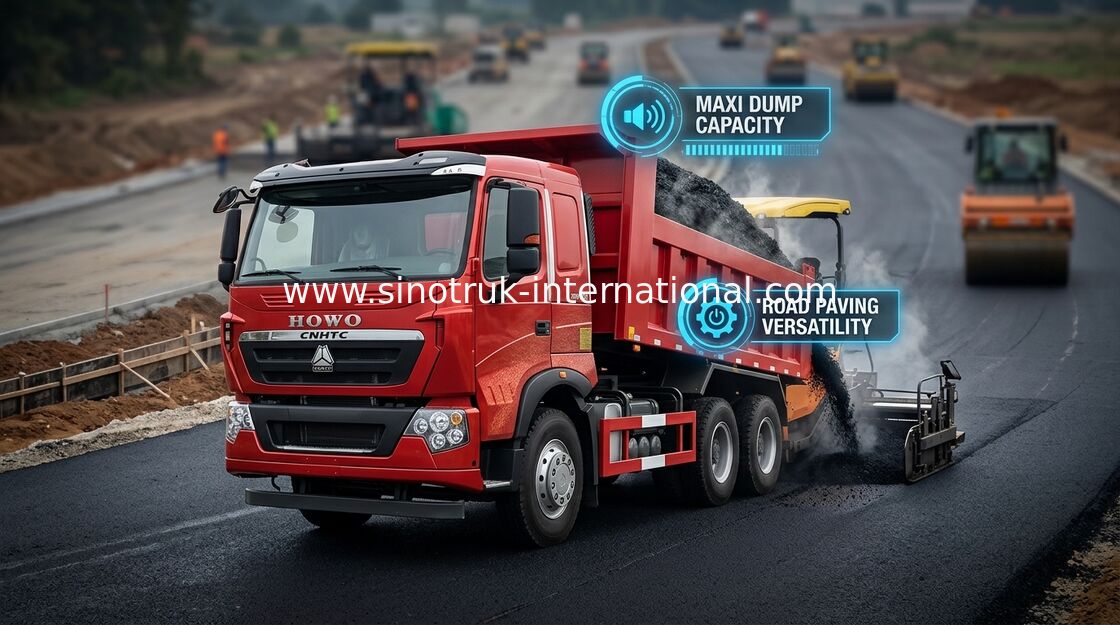

360HP LHD 30 - 40 Tons Sinotruk Howo 6x4 Dump Truck Howo Tipper Truck International

    • 360HP LHD 30 - 40 Tons Sinotruk Howo 6x4 Dump Truck Howo Tipper Truck International
    • 360HP LHD 30 - 40 Tons Sinotruk Howo 6x4 Dump Truck Howo Tipper Truck International
    • 360HP LHD 30 - 40 Tons Sinotruk Howo 6x4 Dump Truck Howo Tipper Truck International
    • 360HP LHD 30 - 40 Tons Sinotruk Howo 6x4 Dump Truck Howo Tipper Truck International
  • 360HP LHD 30 - 40 Tons Sinotruk Howo 6x4 Dump Truck Howo Tipper Truck International

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO T7H
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257N384MD2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3257N384MD2
    Drive Type: LHD 6X4 Emission Standard: Euro 4
    Engine: MC11.36-40, 360HP Cargo Body: 5600*2300*1500mm
    Loading Capacity: 30-40tons Thickness Of Cargo Body: Bottom:8mm, Side: 6mm

    SINOTRUK HOWO T7H Dump Truck Euro4 German Man engine 6X4 360HP LHD 30 - 40tons



    Description:



    SINOTRUK HOWO T7H Dump Truck Euro4 German Man engine 6X4 360HP LHD 30 - 40tons

    T7H series configuration engine as the world's top domestic products MC11 MAN engine, the engine displacement of 10.518L, has great advantages of advanced structure, low speed and high torque, high reliability, low failure rate, high cost, maximum power reached three 430PS (four 440PS). MC11 series engine for the first time in the country with the international leading compacted graphite cast iron material, to ensure that the engine is not deformed 1 million kilometers.



    The main bearings and connecting rod of the engine using the world's advanced cracking technology, to realize the high precision positioning, to reduce wear bearing, improve its service life. The use of breaking technology saves the traditional sense of the crankcase, reducing the weight of the engine. The fuel supply system of the engine adopts BOSCH high pressure common rail form, using the Mobil black overlord XHP super 10W-40 special diesel oil



    T7H highway car for the first time to replace the engine oil mileage of 60 thousand km. MC11 classic: - channel, cylinder oil duct, the intake manifold design to eliminate the cylinder block and cylinder head, intake manifold between Water Leakage leakage and leakage phenomenon. The cylinder body and the cylinder cover with separate cooling water and lubricating oil, no oil and water channel between the two, to eliminate the block and head between Water Leakage; the possibility of oil spills. B10 engine MC11 life of 1 million 500 thousand km, reached the international advanced level. The engine has a very wide range of low fuel consumption and high torque range, so that the engine from low speed to high speed can be in a low range of fuel consumption, effectively reduce fuel consumption. Minimum than the fuel for the 186g/KW.h, compared with the current domestic conventional engine low 10g, which is lower than 5%.



    Specification:



    SINOTRUK HOWO T7H Dump Truck Euro4 German Man engine 6X4 360HP LHD 30 - 40tons
    Model ZZ3257N384MD2
    Drive Type 6×4
    Engine

    MC11.36-40, 360HP( Euro 4)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin T7H-M lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HR9 ( 9 Tons)
    Driving Axle AC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically

    operating with air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8375×2496×3450(mm)
    Cargo body

    5600×2300×1500(mm),Bottom:12mm, Side:10mm

    The curb weight 12200(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.




    Applications:



    It used for Mining industry, Construction business, docks and so on.



    Competitive Advantage:



    1) German MAN engine technology

    2) long quality warranty

    3) reliable quality

    4) good after slaes service, which can send engineers for traning and maintainance

    5) low fuel consumption

    6) strong enough engine
    7) with all kinds of truck model, which can fulfil your requirements

    8) using the high strength steel, make it has a long service life

    9) competive price, cost-effective

    10) fast delivery time, we can arange production according to your needs exactly and quickly

    11) professional import and export dealing precedure, make customs clearance more high efficiency

    12) all kinds of cargo body structure can be designed and produced according to your request,

    make it have light curb weight , high rigidity , high loading capacity

    13) The optimized hydraulic control system helps to avoid wrong operation, it has higher

    safety and running efficiency.

    14) excellant apperance of cabin, safety, reliable

    15) quick and efficient spare parts supply bring you more convenient

    16) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

    17) The hydraulic sytem using HYVA brand or Domestic famouse brand



    360HP LHD 30 - 40 Tons Sinotruk Howo 6x4 Dump Truck Howo Tipper Truck International360HP LHD 30 - 40 Tons Sinotruk Howo 6x4 Dump Truck Howo Tipper Truck International
