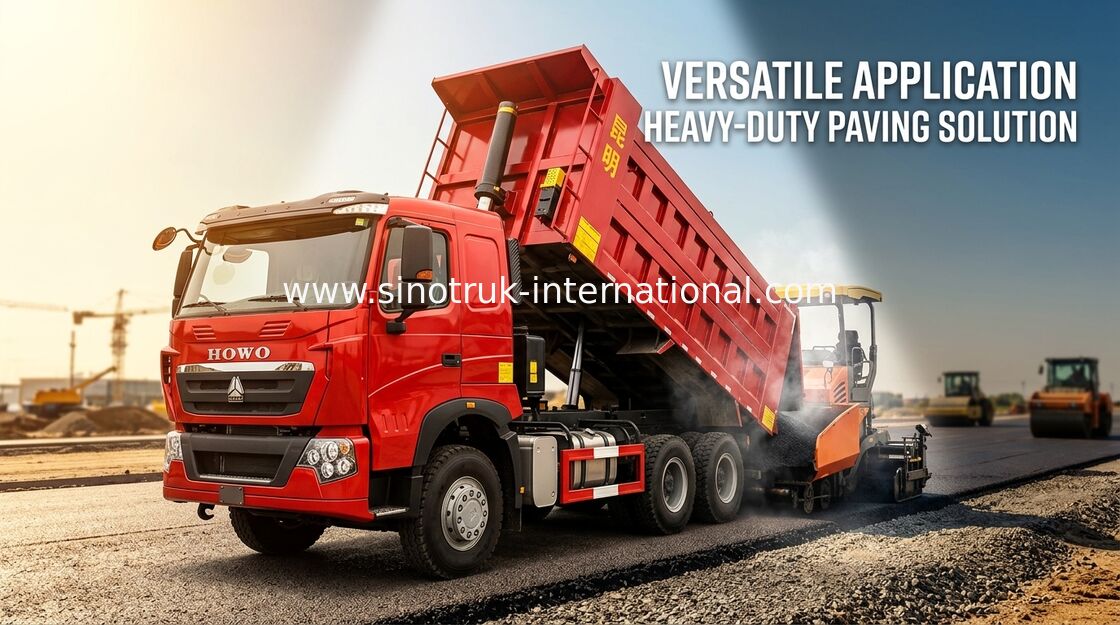

SINOTRUK HOWO T7H Dump Truck German Man Engine 12 Wheels 360HP LHD For Mining Area

SINOTRUK HOWO T7H Dump Truck German Man Engine 12 Wheels 360HP LHD For Mining Area

    • SINOTRUK HOWO T7H Dump Truck German Man Engine 12 Wheels 360HP LHD For Mining Area
    • SINOTRUK HOWO T7H Dump Truck German Man Engine 12 Wheels 360HP LHD For Mining Area
    • SINOTRUK HOWO T7H Dump Truck German Man Engine 12 Wheels 360HP LHD For Mining Area
  • SINOTRUK HOWO T7H Dump Truck German Man Engine 12 Wheels 360HP LHD For Mining Area

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO T7H
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3317N386MD2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3317N386MD2
    Drive Type: LHD 8X4 Emission Standard: Euro 4
    Engine: MC11.36-40, 360HP Cargo Body: 5600*2300*1500mm
    Loading Capacity: 60-70tons Lfiting Type: Front Or Middle Hydraulic Cylinder
    Thickness Of Cargo Body: Bottom:8mm, Side: 6mm

    SINOTRUK HOWO T7H Dump Truck German Man engine 12 wheels 360HP LHD for mining area



    Description:



    SINOTRUK HOWO T7H Dump Truck German Man engine 12 wheels 360HP LHD for mining area

    T7H series configuration engine as the world's top domestic products MC11 MAN engine, the engine

    Chinese's T series is Chinese heavy truck with German man using the same technology, and Germany's production equipment, with German man the same inspection standard, combined with Chinese conditions with the new generation of high security, more than 50 years of experience in the production of mature truck manufacturing out of high reliability and high economy products.



    HOWOT7H heavy truck cab China T7H cab used was awarded the "2011 China patent design excellence award HOWO-A7 cab, become an independent school in the design style, the mighty. Highway vehicle adopts large span less spring, four airbags cab air suspension for China users to enjoy the country

    As the most advanced heavy truck driving pleasure. With the world's top heavy truck with the main, passive safety, cab design index according to Swedish standard, the steering column collision deformation; the cab is divided into Standard Version, upgrade edition, deluxe edition three six models, the design of the people are very so, with Chinese

    Enjoy with the European synchronous safe driving comfortable. Low drag cab design, strict wind tunnel test and calibration of.T7H high roof double 6X4 tractor, 90 step load 55T in plain highway condition, the drag coefficient of only 0.55.





    Specification:



    SINOTRUK HOWO T7H Dump Truck German Man engine 12 wheels 360HP LHD for mining area
    Model ZZ3317N386MD2
    Drive Type 8×4
    Engine

    MC11.36-40, 360HP( Euro 4)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin T7H-M lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HR9 ( 9 Tons)
    Driving Axle AC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically

    operating with air assistance

    Rim/ Tire 12.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 1800+3800+1350(mm)
    Overall dimension 10175×2496×3450(mm)
    Cargo body

    7600×2300×1500(mm),Bottom:12mm, Side:10mm

    The curb weight 15200(Kg)
    Gross weight 31000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.




    Applications:



    It used for Mining industry, Construction business, docks and so on.



    Competitive Advantage:



    1) German MAN engine technology

    2) long quality warranty

    3) reliable quality

    4) good after slaes service, which can send engineers for traning and maintainance

    5) low fuel consumption

    6) strong enough engine
    7) with all kinds of truck model, which can fulfil your requirements

    8) using the high strength steel, make it has a long service life

    9) competive price, cost-effective

    10) fast delivery time, we can arange production according to your needs exactly and quickly

    11) professional import and export dealing precedure, make customs clearance more high efficiency

    12) all kinds of cargo body structure can be designed and produced according to your request,

    make it have light curb weight , high rigidity , high loading capacity

    13) The optimized hydraulic control system helps to avoid wrong operation, it has higher

    safety and running efficiency.

    14) excellant apperance of cabin, safety, reliable

    15) quick and efficient spare parts supply bring you more convenient

    16) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

    17) The hydraulic sytem using HYVA brand or Domestic famouse brand
